STP30NF10FP, STP30NF10 Datasheet - STMicroelectronics

STP30NF10FP, STP30NF10, N-CHANNEL Power MOSFET

STB30NF10 STP30NF10 - STP30NF10FP N-channel 100V - 0.038Ω - 35A - D2PAK/TO-220/TO-220FP Low gate charge STripFET™ II Power MOSFET General .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

Features

* Type STB30NF10 STP30NF10 STP30NF10FP VDSS 100V 100V 100V RDS(on)

Applications

* Switching application 3 2 1 TO-220 3 1 D2PAK 3 2 1 TO-220FP Internal schematic diagram Order codes Sales type STB30NF10T4 STP30NF10 STP30NF10FP Marking B30NF10 P30NF10 P30NF10FP Package D2PAK TO-220 TO-220FP Packaging Tape & reel Tube Tube June 2006 Rev 2 1/16 www. st. com 16 Conten

STP30NF10_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP30NF10FP, STP30NF10. Please refer to the document for exact specifications by model.

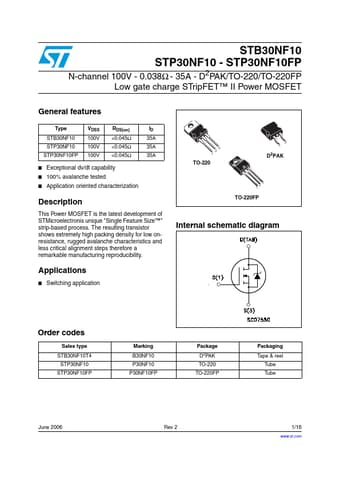

STP30NF10FP Datasheet Preview Page 2 STP30NF10FP Datasheet Preview Page 3

Datasheet Details

Part number:

STP30NF10FP, STP30NF10

Manufacturer:

STMicroelectronics ↗

File Size:

488.28 KB

Description:

N-CHANNEL Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP30NF10FP, STP30NF10.
Please refer to the document for exact specifications by model.
