STP30N06 - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

📥 Download Datasheet

Datasheet preview – STP30N06

Datasheet Details

Part number STP30N06
Manufacturer STMicroelectronics
File Size 227.27 KB
Description N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR
Datasheet download datasheet STP30N06 Datasheet
Additional preview pages of the STP30N06 datasheet.

📁 Similar Datasheet

  • STP30N06FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N05 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N10F7 - N-Channel MOSFET (INCHANGE)
  • STP30N65M5 - N-Channel MOSFET (INCHANGE)
  • STP30NE03L - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NE03LFP - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NE06 - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NF10 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NF10 - N-Channel MOSFET (INCHANGE)
  • STP30NF10FP - N-Channel MOSFET (INCHANGE)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

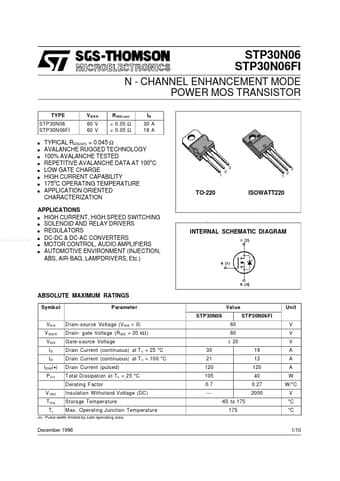

STP30N06 STP30N06FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP30N06 STP30N06FI s s s s s s s s V DSS 60 V 60 V R DS( on) < 0.05 Ω < 0.05 Ω ID 30 A 19 A TYPICAL RDS(on) = 0.045 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-220 ISOWATT220 www.DataSheet4U.com APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc.
