- Description
- N-CHANNEL POWER MOSFET
STP30N65M5 Description

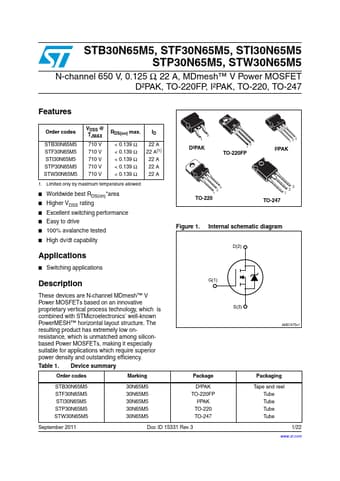

STB30N65M5, STF30N65M5, STI30N65M5 STP30N65M5, STW30N65M5 N-channel 650 V, 0.125 Ω, 22 A, MDmesh™ V Power MOSFET D²PAK, TO-220FP, I²PAK, TO-220, TO-24.
'
These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMi.
STP30N65M5 Features
* Order codes
STB30N65M5 STF30N65M5 STI30N65M5 STP30N65M5 STW30N65M5
VDSS @ TJMAX
710 V 710 V 710 V 710 V 710 V
RDS(on) max. ID
< 0.139 Ω < 0.139 Ω < 0.139 Ω < 0.139 Ω < 0.139 Ω
22 A 22 A(1) 22 A 22 A 22 A
1. Limited only by maximum temperature allowed
* Worldwide best RDS(on)
* area
STP30N65M5 Applications
* 3 1
D²PAK
3 2 1
TO-220FP
123
I²PAK
3 2 1
TO-220
3 2 1
TO-247
Figure 1. Internal schematic diagram
$
