STP34N65M5 N-Channel MOSFET

STP34N65M5 Description

isc N-Channel MOSFET Transistor STP34N65M5 .

STP34N65M5 Features

* Drain Current
* ID=28A@ TC=25ā„ƒ
* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 110mĪ©(Max)
* 100% avalanche tested

STP34N65M5 Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25ā„ƒ) SYMBOL PARAMETER VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25ā„ƒ TJ Max. Operating Junction Temperature Tstg Storage Tempera

📥 Download Datasheet

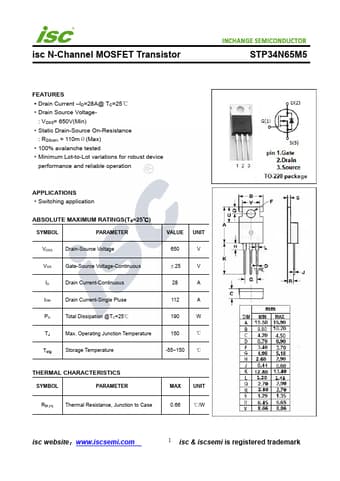

Preview of STP34N65M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP34N65M5
Manufacturer
INCHANGE
File Size
271.62 KB
Datasheet
STP34N65M5-INCHANGE.pdf
Description
N-Channel MOSFET
