STP32NM50N - N-Channel MOSFET

The STP32NM50N by INCHANGE is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

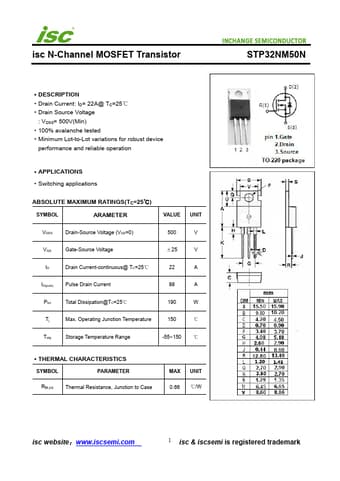

Official preview page of the STP32NM50N N-Channel MOSFET datasheet (INCHANGE).

Datasheet Details

Part number STP32NM50N
Manufacturer INCHANGE
File Size 226.65 KB
Description N-Channel MOSFET
Datasheet download datasheet STP32NM50N-INCHANGE.pdf
Additional preview pages of the STP32NM50N datasheet.

STP32NM50N Product details

Description

Drain Current: ID= 22A@ TC=25℃ Drain Source Voltage : VDSS= 500V(Min) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching applications ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±25 V ID Drain Current-continuous@ TC=25℃ 22 A ID(puls) Pulse Drain Current 88 A Ptot Total Dissipation@TC=25℃
