STP32N05LFI, STP32N05L Datasheet - STMicroelectronics

STP32N05LFI N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

STP32N05L STP32N05LFI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP32N05L STP32N05LFI www.DataSheet4U.com s s s s s s s s s V DSS 50 V 50 V R DS( on) < 0.055 Ω < 0.055 Ω ID 32 A 19 A TYPICAL RDS(on) = 0.045 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY LOGIC LEVEL COMPATIBLE INPUT o 175 C OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-220 ISOWATT220 APPLICATIONS HIGH.

STP32N05L_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP32N05LFI, STP32N05L. Please refer to the document for exact specifications by model.

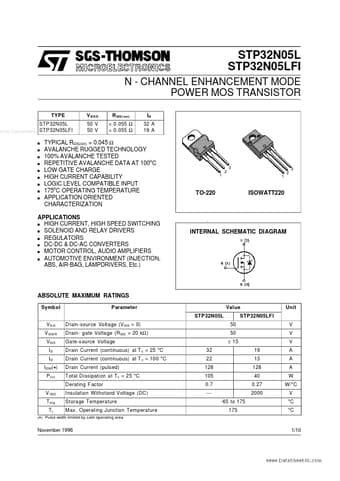

STP32N05LFI Datasheet Preview Page 2 STP32N05LFI Datasheet Preview Page 3

Datasheet Details

Part number:

STP32N05LFI, STP32N05L

Manufacturer:

STMicroelectronics ↗

File Size:

233.82 KB

Description:

N-channel enhancement mode power mos transistor.

Note:

This datasheet PDF includes multiple part numbers: STP32N05LFI, STP32N05L.
Please refer to the document for exact specifications by model.
