STP3020L - N - CHANNEL POWER MOSFET

STP3020L Description

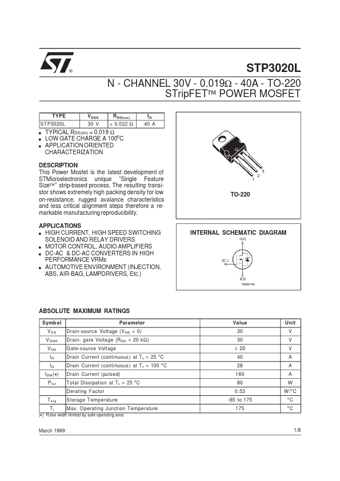

® STP3020L N - CHANNEL 30V - 0.019Ω - 40A - TO-220 STripFET™ POWER MOSFET TYPE ST P3020L s s s V DSS 30 V R DS(on) < 0.022 Ω ID 40 A TYPICAL RDS.
This Power Mosfet is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

STP3020L Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-AC & DC-AC CONVERTERS IN HIGH PERFORMANCE VRMs s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR
