STP2301S

Single P-Channel MOSFET

STP2301S Features

* VDS=-20V, ID=-3A RDS(ON)=80mΩ(Typ.)@VGS=-4.5V RDS(ON)=105mΩ(Typ.)@VGS=-2.5V

* Fast switch

* APPLICATIONS

* Hend-Held Instruments

* Battery Powered Systems D D S G SOT-23 G S

* ABSOLUTE MAXIMUM RATINGS (TA=25°C Unless otherwise noted ) Symbol VDSS VGSS Drain-Source Voltage Gate-So

STP2301S General Description

STP2301S is the P-Channel MOSFET , this advanced trench technology to provide excellent RDS(ON). This devices are well suited for high efficiency fast switching applications, low in-line power loss are needed in small outline surface mount package.
*PART NUMBER INFORMATION STP 2301 S - TR G a b.

STP2301S Datasheet (310.56 KB)

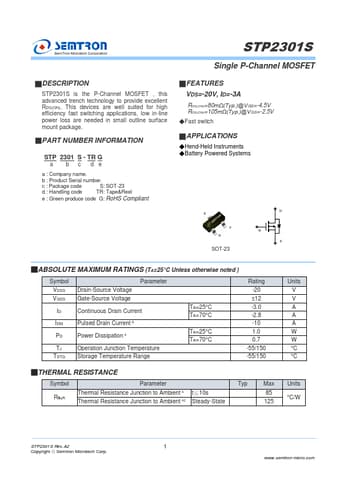

Preview of STP2301S PDF

Datasheet Details

Part number:

STP2301S

Manufacturer:

Semtron

File Size:

310.56 KB

Description:

Single p-channel mosfet.
