STP23N80K5

N-channel Power MOSFET

STP23N80K5 Features

* Order code VDS RDS(on) max. ID PTOT STP23N80K5 800 V 0.28 Ω 16 A 190 W

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This ve

STP23N80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STP23N80K5 Datasheet (580.73 KB)

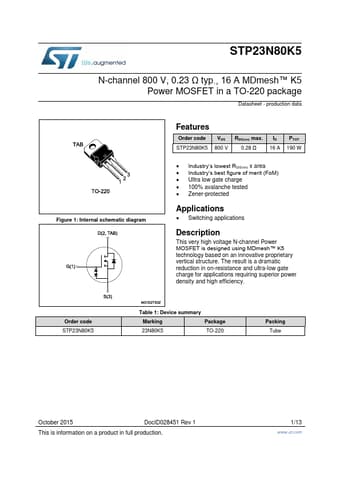

Preview of STP23N80K5 PDF

Datasheet Details

Part number:

STP23N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

580.73 KB

Description:

N-channel power mosfet.
STP23N80K5 N-channel 800 V, 0.23 Ω typ., 16 A MDmesh™ K5 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schematic d.
