STP2305 - P-Channel Enhancement Mode MOSFET

STP2305 Description

P-Channel Enhancement Mode MOSFET STP2305 *.
-30V P-Channel Enhancement Mode MOSFET. FEATURE The STP2305 is the P-Channel logic enhancement mode power field effect transistor is produced us.

STP2305 Applications

* -30V/-4.3A, RDS(ON) =55mΩ(typ. )@VGS =-10V
* -30V/-3.5A, RDS(ON) =65mΩ(typ. )@VGS =-4.5V
* -30V/-2.5A, RDS(ON) =87mΩ(typ. )@VGS =-2.5V
* Super high density cell design for extremely low RDS(ON)
* Exceptional on-resistance and Maximum DC current capability STP2305S-TRG ROHS Comp

📥 Download Datasheet

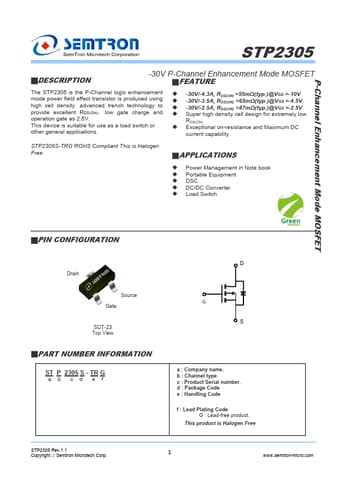

Preview of STP2305 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP2305
Manufacturer
Semtron
File Size
371.63 KB
Datasheet
STP2305-Semtron.pdf
Description
P-Channel Enhancement Mode MOSFET
