STP200NF04L Datasheet, Mosfet, ST Microelectronics

STP200NF04L Features

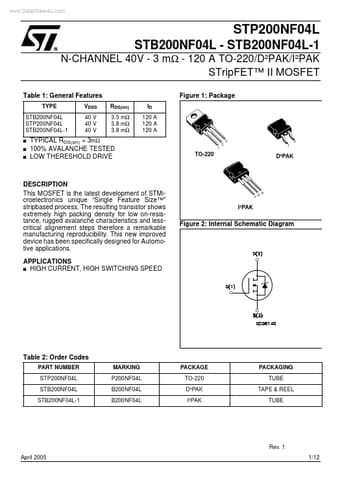

• Mosfet TYPE STB200NF04L STP200NF04L STB200NF04L-1 s s s Figure 1: Package RDS(on) 3.5 mΩ 3.8 mΩ 3.8 mΩ ID 120 A 120 A 120 A 3 1 2 VDSS 40 V 40 V 40 V TYPICAL RDS(on) = 3mΩ 100% AVALANCHE TE

PDF File Details

Part number:

STP200NF04L

Manufacturer:

STMicroelectronics ↗

File Size:

367.30kb

Download:

📄 Datasheet

Description:

N-channel stripfet ii mosfet. This MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” stripbased process. The resulting transisto

STP200NF04L Application

• Applications APPLICATIONS s HIGH CURRENT, HIGH SWITCHING SPEED 3 12 I²PAK Figure 2: Internal Schematic Diagram Table 2: Order Codes PART NUMBER
