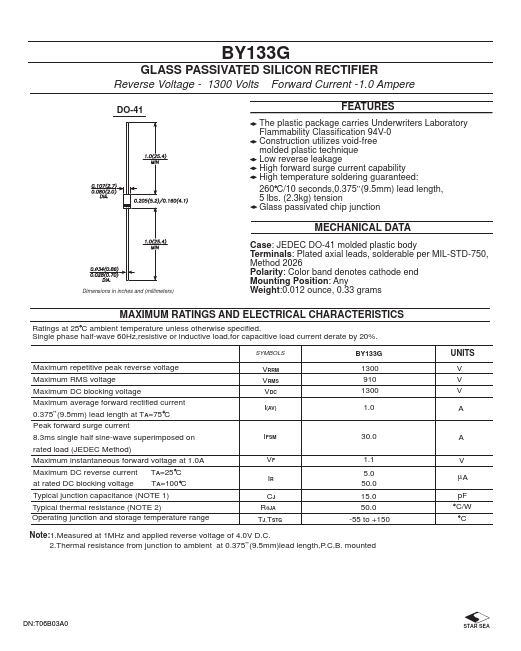

BY133G
GLASS PASSIVATED SILICON RECTIFIER Reverse Voltage - 1300 Volts Forward Current -1.0 Ampere
DO-41
FEATURES
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Glass passivated chip junction
Dimensions in inches and (millimeters)
MECHANICAL DATA
Case: JEDEC DO-41 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.012 ounce, 0.
