Description

GD150PIY120C6SN STARPOWER SEMICONDUCTOR GD150PIY120C6SN 1200V/150A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

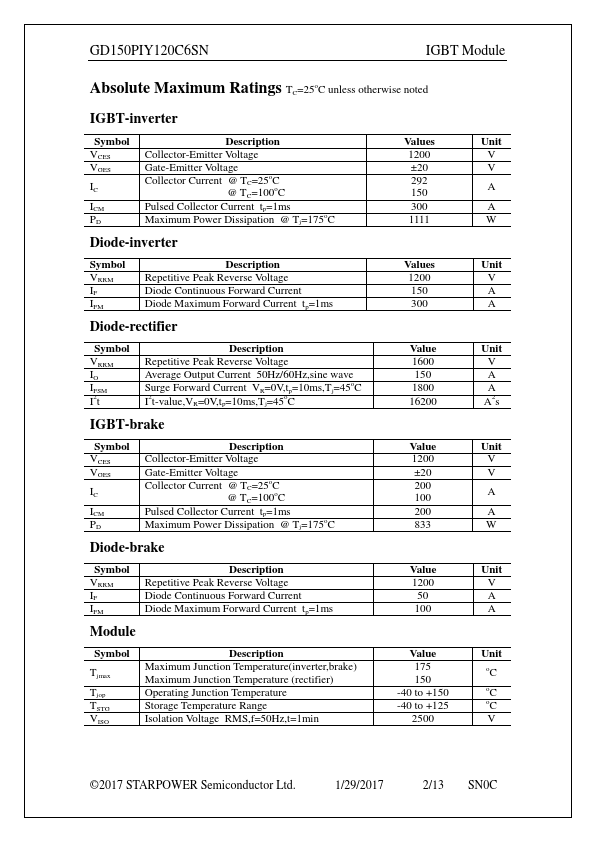

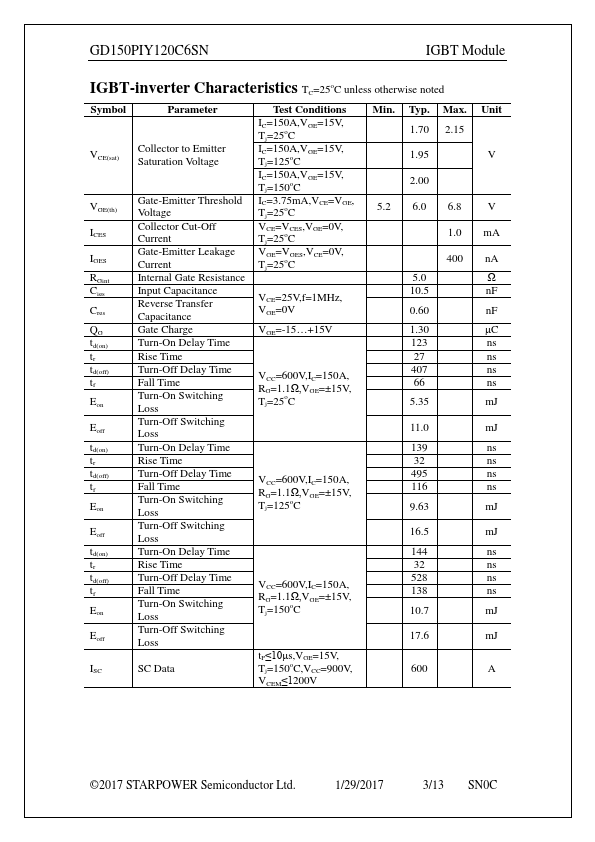

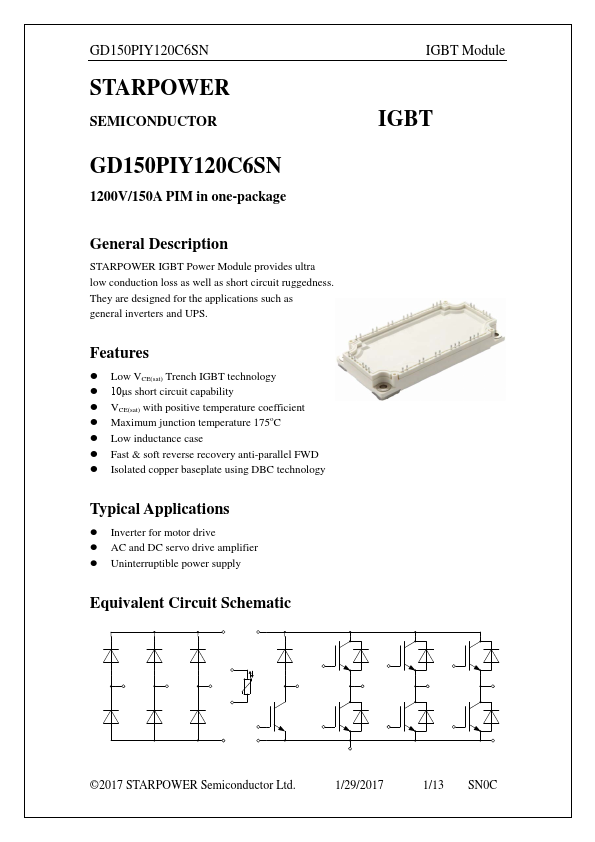

GD150PIY120C6SN Datasheet Preview — Preview of GD150PIY120C6SN PDF

Datasheet Specifications

Part number: GD150PIY120C6SN
Manufacturer: STARPOWER
File Size: 255.87 KB
Datasheet: GD150PIY120C6SN-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
