GD15PJX120L1SA - IGBT

STARPOWER

📥 Download Datasheet

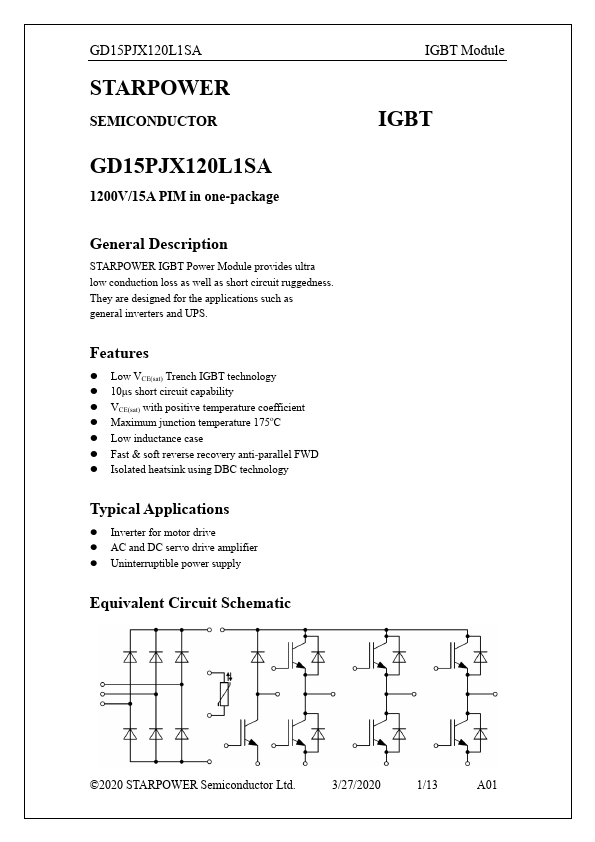

GD15PJX120L1SA Datasheet Preview — Preview of GD15PJX120L1SA PDF

datasheet Preview Page 2

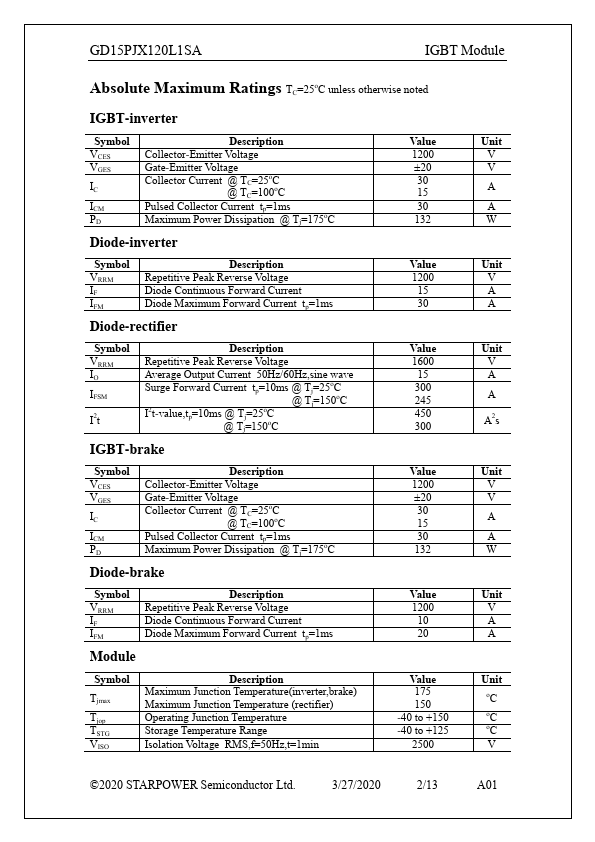

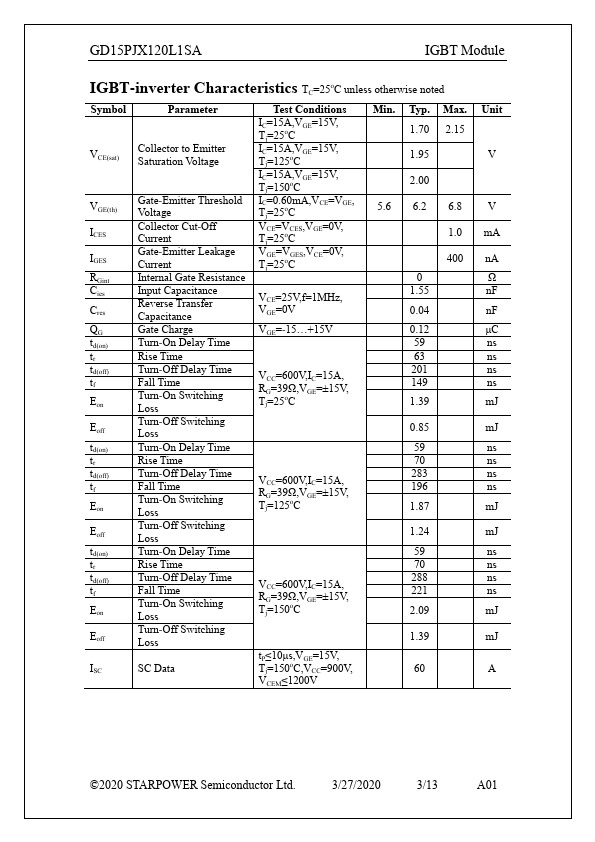

datasheet Preview Page 3

Datasheet Details

Part number	GD15PJX120L1SA
Manufacturer	STARPOWER
File Size	714.94 KB
Description	IGBT
Datasheet	GD15PJX120L1SA-STARPOWER.pdf

GD15PJX120L1SA Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
