GD200HFY120C2S - IGBT

STARPOWER

📥 Download Datasheet

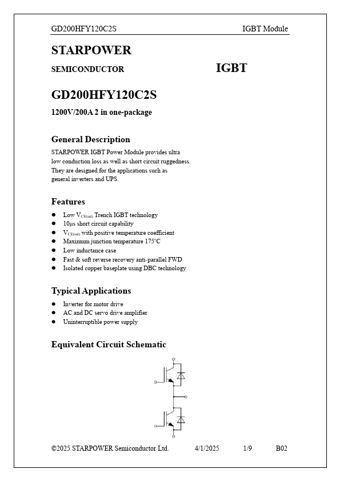

GD200HFY120C2S Datasheet Preview — Preview of GD200HFY120C2S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GD200HFY120C2S
Manufacturer	STARPOWER
File Size	312.51 KB
Description	IGBT
Datasheet	GD200HFY120C2S-STARPOWER.pdf

GD200HFY120C2S Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
