GD200MLT120C2S, IGBT

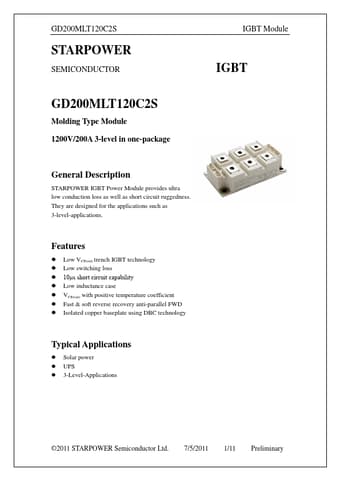

GD200MLT120C2S STARPOWER SEMICONDUCTOR GD200MLT120C2S Molding Type Module 1200V/200A 3-level in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

datasheet Preview Page 1 from Datasheet4u.com

GD200MLT120C2S-STARPOWER.pdf

GD200MLT120C2S Datasheet Preview — Preview of GD200MLT120C2S PDF

Datasheet Details

Part number:

GD200MLT120C2S

Manufacturer:

STARPOWER

File Size:

435.78 KB

Description:

IGBT

Features

* Low VCE(sat) trench IGBT technology
* Low switching loss
* 10μs short circuit capability
* Low inductance case
* VCE(sat) with positive temperature coefficient
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technology Typical Appl
