GD200FFX65C6SF - IGBT

STARPOWER

📥 Download Datasheet

GD200FFX65C6SF Datasheet Preview — Preview of GD200FFX65C6SF PDF

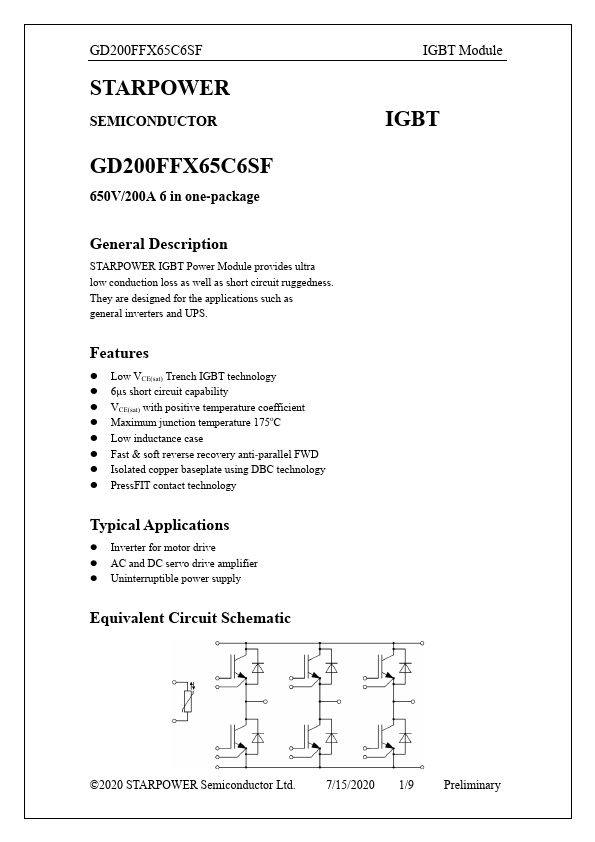

datasheet Preview Page 2

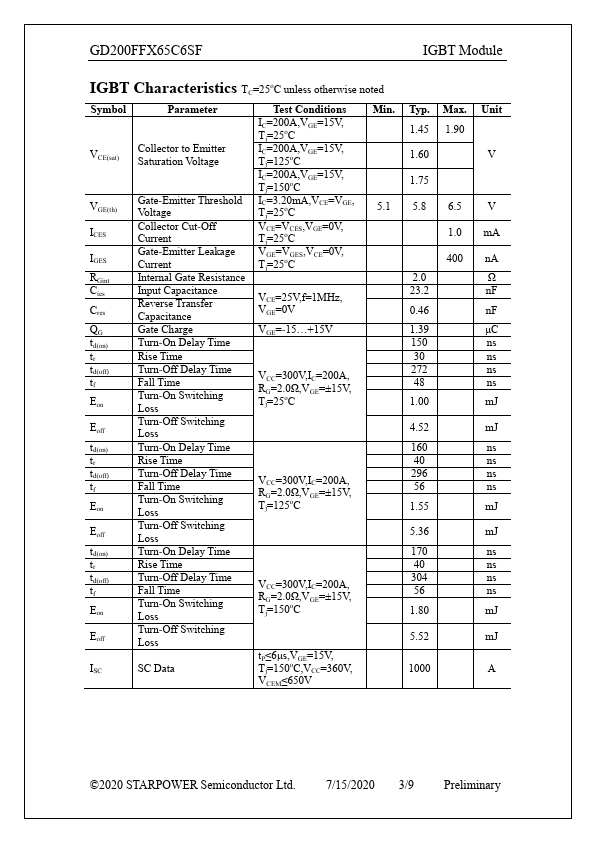

datasheet Preview Page 3

Datasheet Details

Part number: GD200FFX65C6SF
Manufacturer: STARPOWER
File Size: 486.86 KB
Datasheet: GD200FFX65C6SF-STARPOWER.pdf
Description: IGBT

GD200FFX65C6SF Product details

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
PressFIT contact technology Typical.
