GD200FFY120C6SF - IGBT

STARPOWER

📥 Download Datasheet

GD200FFY120C6SF Datasheet Preview — Preview of GD200FFY120C6SF PDF

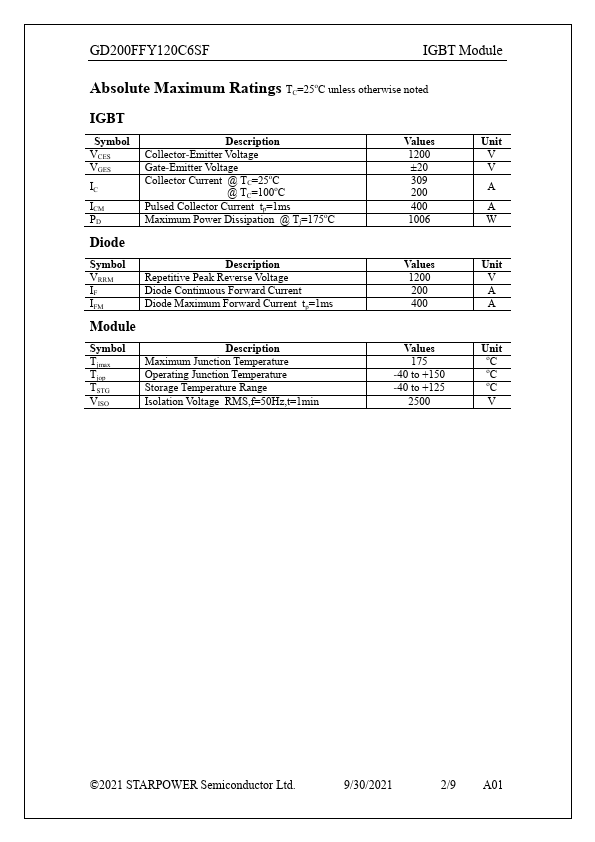

datasheet Preview Page 2

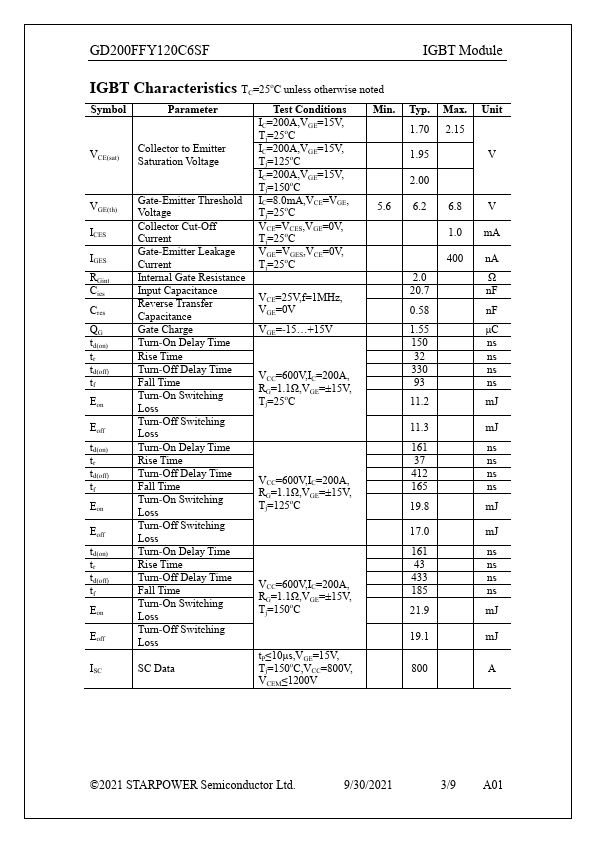

datasheet Preview Page 3

Datasheet Details

Part number	GD200FFY120C6SF
Manufacturer	STARPOWER
File Size	517.48 KB
Description	IGBT
Datasheet	GD200FFY120C6SF-STARPOWER.pdf

GD200FFY120C6SF Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
PressFIT contact technology Typical.
