GD200FFY120C6S - IGBT

STARPOWER

📥 Download Datasheet

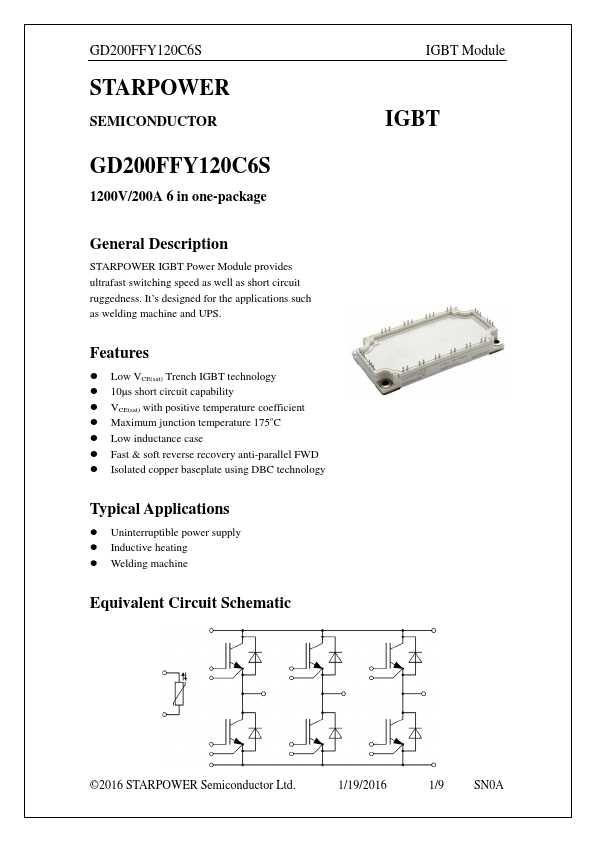

GD200FFY120C6S Datasheet Preview — Preview of GD200FFY120C6S PDF

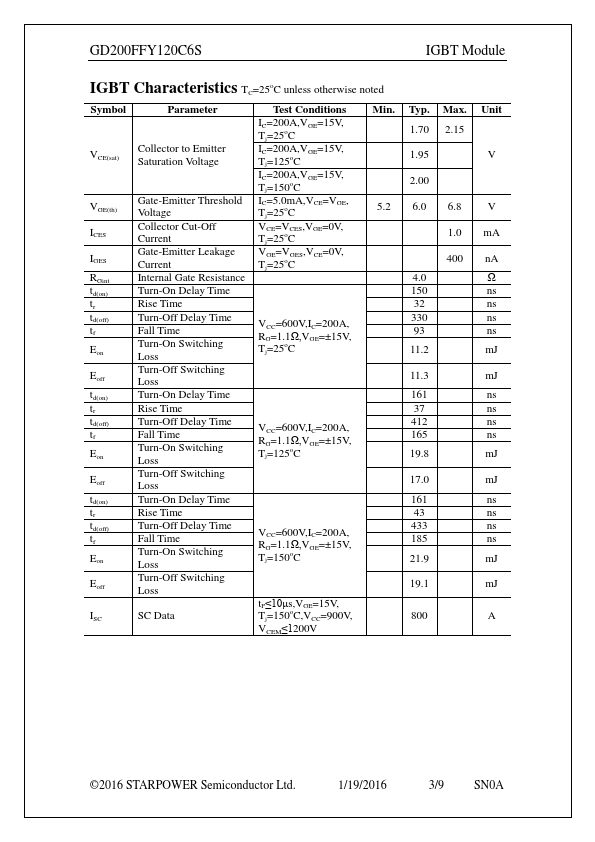

datasheet Preview Page 2

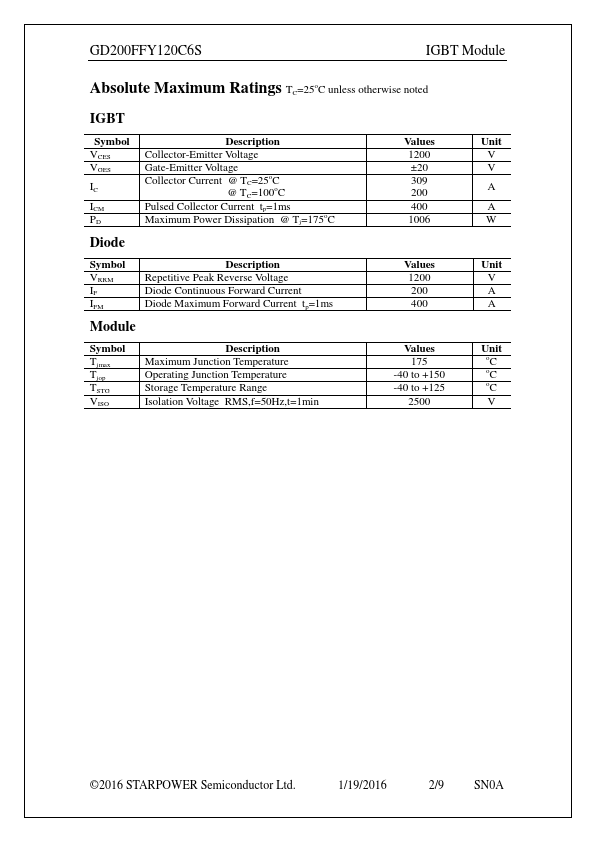

datasheet Preview Page 3

Datasheet Details

Part number	GD200FFY120C6S
Manufacturer	STARPOWER
File Size	219.34 KB
Description	IGBT
Datasheet	GD200FFY120C6S-STARPOWER.pdf

GD200FFY120C6S Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
