GD20PJX65F1S IGBT

STARPOWER

Description

GD20PJX65F1S STARPOWER SEMICONDUCTOR GD20PJX65F1S 650V/20A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

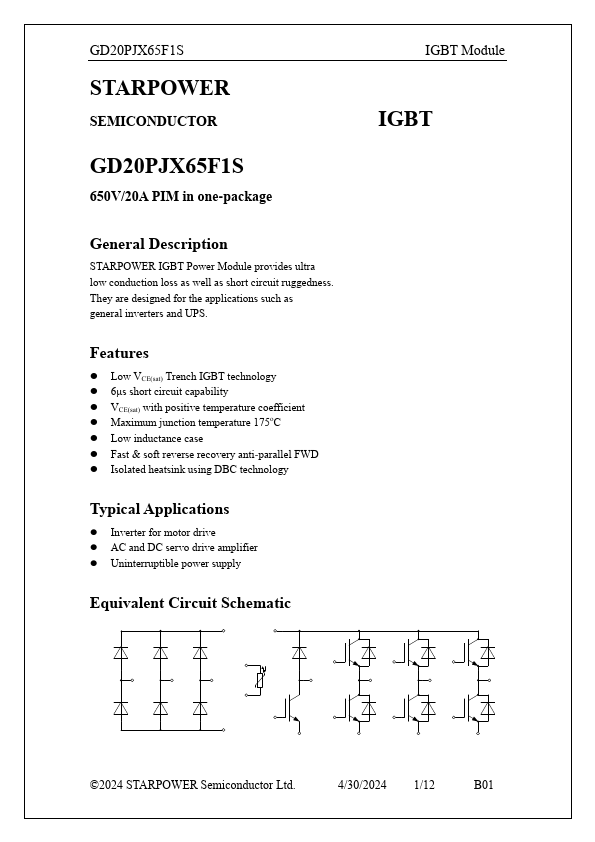

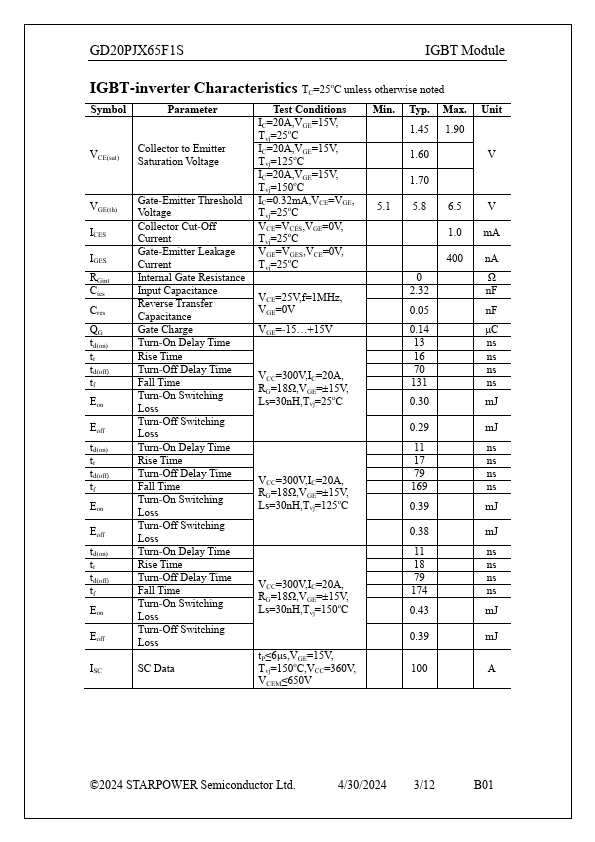

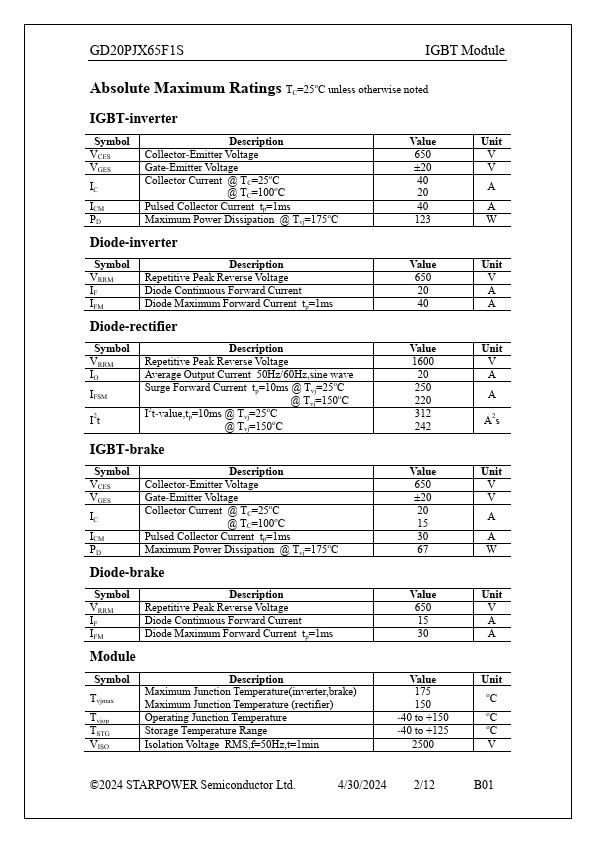

GD20PJX65F1S Datasheet Preview — Preview of GD20PJX65F1S PDF

Datasheet Specifications

Part number: GD20PJX65F1S
Manufacturer: STARPOWER
File Size: 528.11 KB
Datasheet: GD20PJX65F1S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology Typic
