GD300HFU120C6SD - IGBT

STARPOWER

📥 Download Datasheet

GD300HFU120C6SD Datasheet Preview — Preview of GD300HFU120C6SD PDF

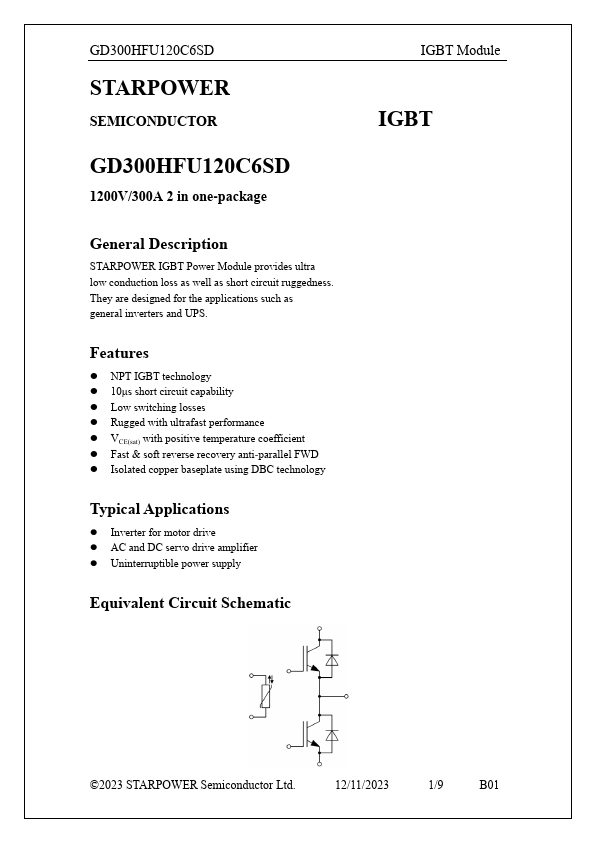

datasheet Preview Page 2

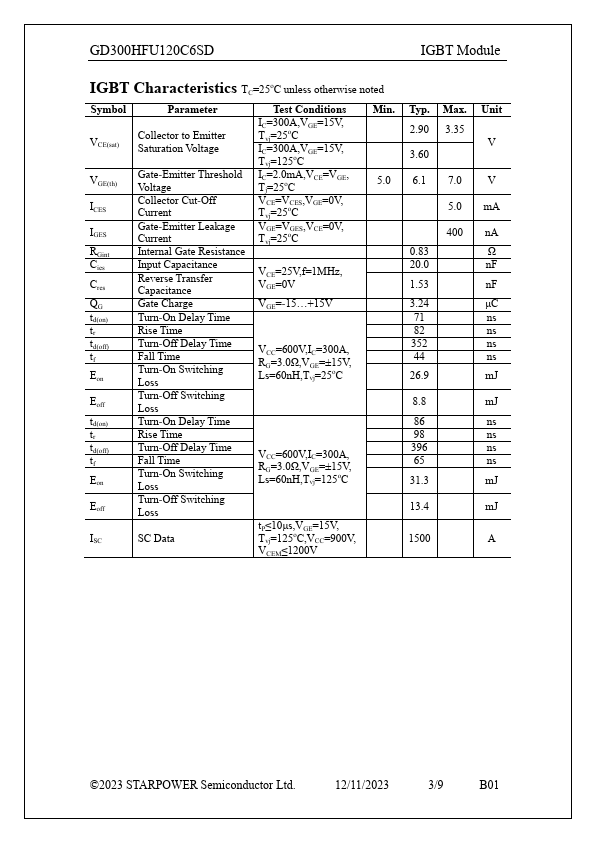

datasheet Preview Page 3

Datasheet Details

Part number	GD300HFU120C6SD
Manufacturer	STARPOWER
File Size	454.58 KB
Description	IGBT
Datasheet	GD300HFU120C6SD-STARPOWER.pdf

GD300HFU120C6SD Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

NPT IGBT technology.
10μs short circuit capability.
Low switching losses.
Rugged with ultrafast performance.
VCE(sat) with positive temperature coefficient.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
