GD400CLX65C2S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as inductive heating.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 6μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

Datasheet preview – GD400CLX65C2S

Datasheet Details

Part number GD400CLX65C2S
Manufacturer STARPOWER
File Size 410.27 KB
Description IGBT
Datasheet download datasheet GD400CLX65C2S Datasheet

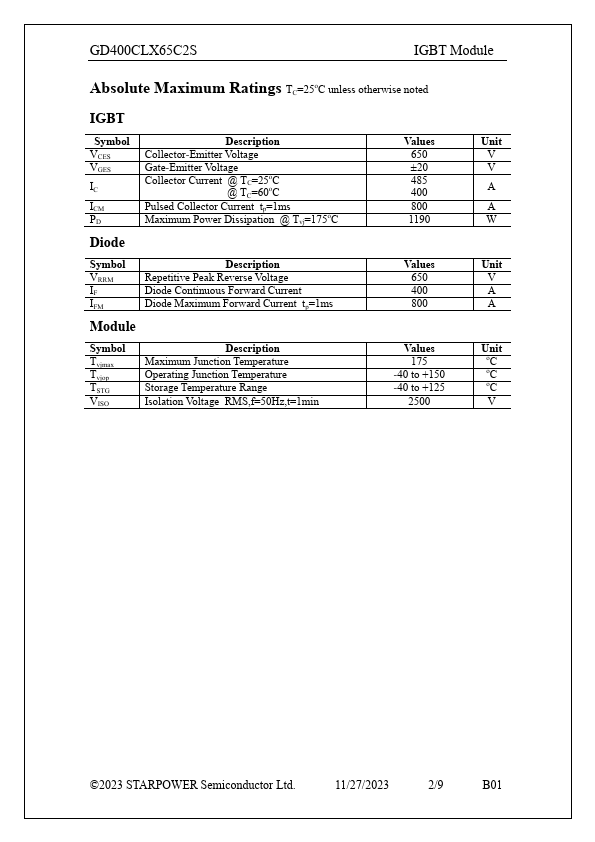

Additional preview pages of the GD400CLX65C2S datasheet.

📁 Similar Datasheet

  • GD4001B - Quad 2-Input NOR Gate / Dual 4-Input NOR Gate (Hynix Semiconductor)
  • GD400SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD4011B - Dual NAND Gate (Hynix Semiconductor)
  • GD4012B - Dual NAND Gate (Hynix Semiconductor)
  • GD4013B - Dual D Flip-Flop (Hynix Semiconductor)
  • GD4015B - Dual 4-Bit Static Shift Register (Hynix Semiconductor)
  • GD4017B - 5-Stage Johnson Counter (Hynix Semiconductor)
  • GD401SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD402 - Gas Density Meter Manual (Yokogawa)
  • GD4021B - 8-Bit Shift Register (Hynix Semiconductor)
Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text

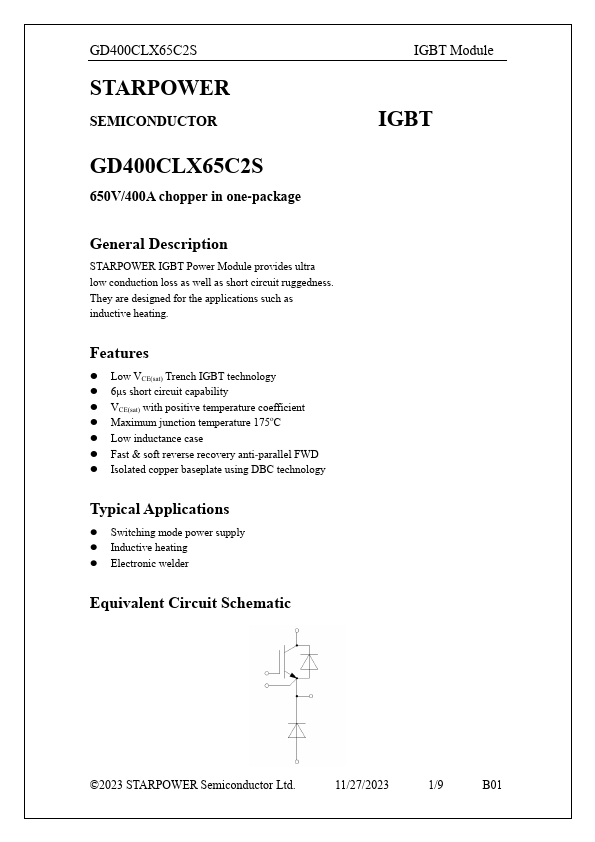

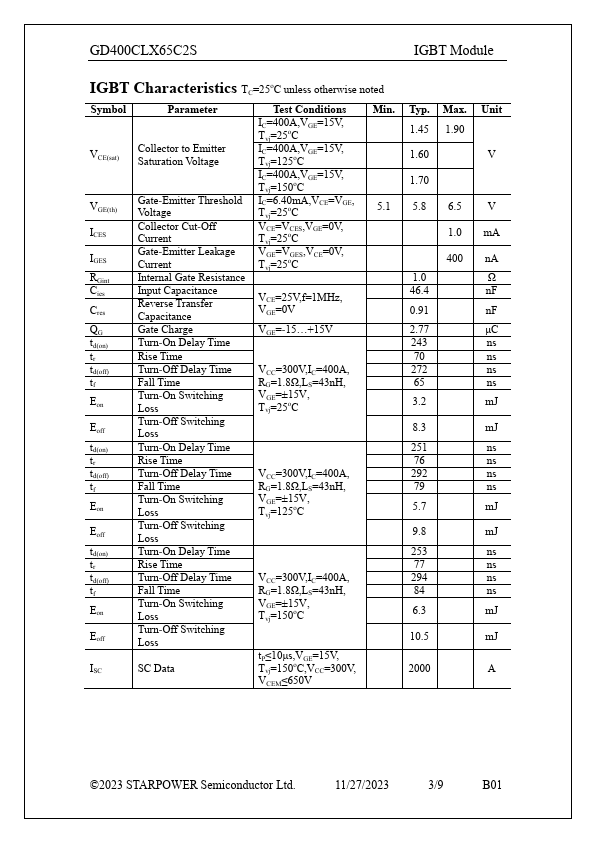

GD400CLX65C2S STARPOWER SEMICONDUCTOR GD400CLX65C2S 650V/400A chopper in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as inductive heating. Features  Low VCE(sat) Trench IGBT technology  6μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Switching mode power supply  Inductive heating  Electronic welder Equivalent Circuit Schematic IGBT Module IGBT ©2023 STARPOWER Semiconductor Ltd.
