GD400CUX170C2S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 10μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

Datasheet preview – GD400CUX170C2S

Datasheet Details

Part number GD400CUX170C2S
Manufacturer STARPOWER
File Size 334.27 KB
Description IGBT
Datasheet download datasheet GD400CUX170C2S Datasheet
Additional preview pages of the GD400CUX170C2S datasheet.

📁 Similar Datasheet

  • GD4001B - Quad 2-Input NOR Gate / Dual 4-Input NOR Gate (Hynix Semiconductor)
  • GD400SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD4011B - Dual NAND Gate (Hynix Semiconductor)
  • GD4012B - Dual NAND Gate (Hynix Semiconductor)
  • GD4013B - Dual D Flip-Flop (Hynix Semiconductor)
  • GD4015B - Dual 4-Bit Static Shift Register (Hynix Semiconductor)
  • GD4017B - 5-Stage Johnson Counter (Hynix Semiconductor)
  • GD401SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD402 - Gas Density Meter Manual (Yokogawa)
  • GD4021B - 8-Bit Shift Register (Hynix Semiconductor)
Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text

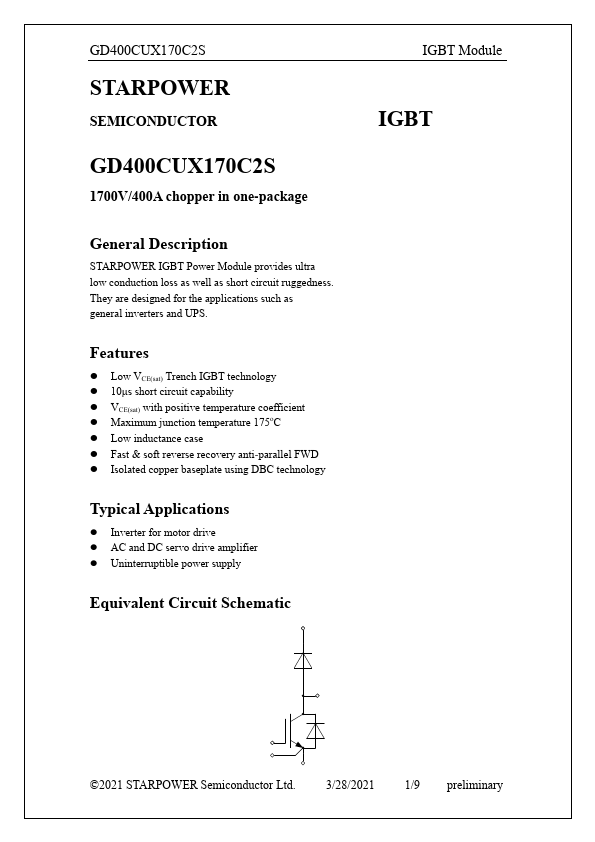

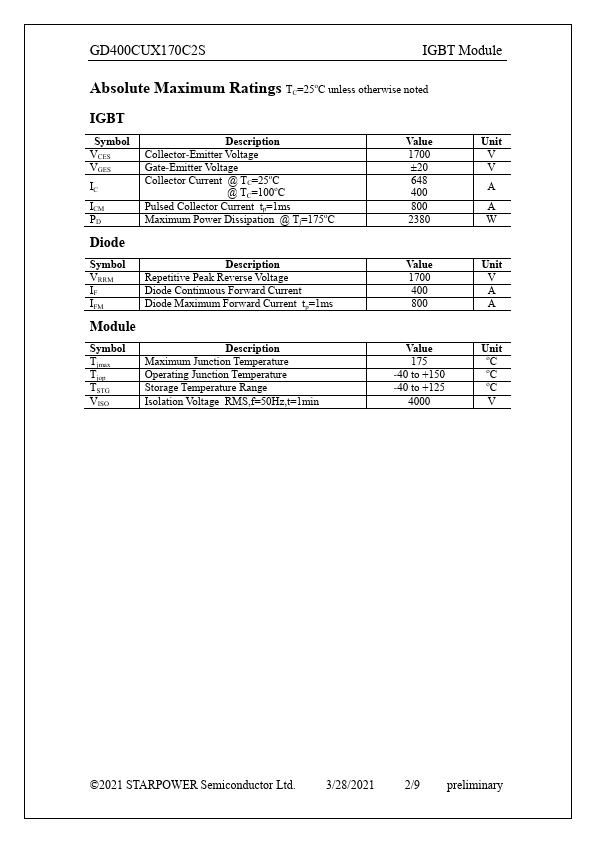

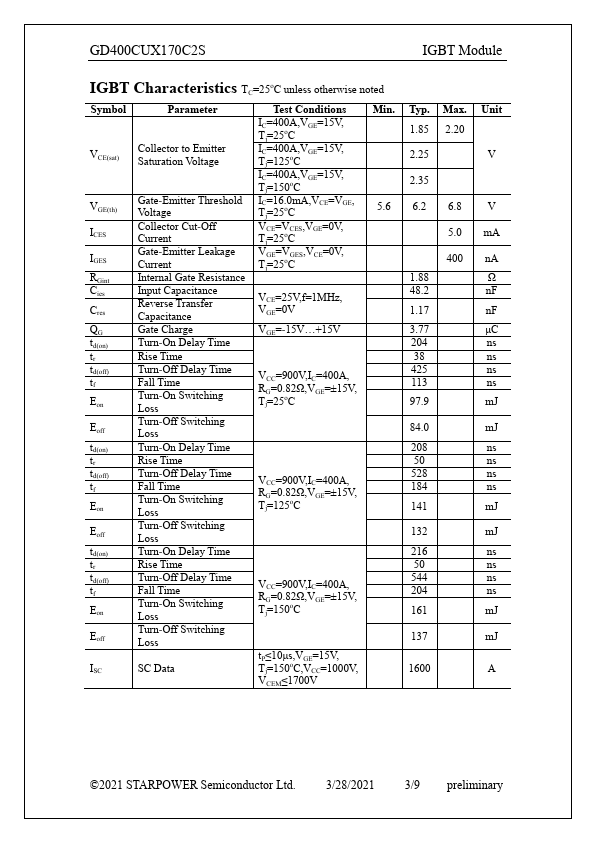

GD400CUX170C2S STARPOWER SEMICONDUCTOR GD400CUX170C2S 1700V/400A chopper in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  Low VCE(sat) Trench IGBT technology  10μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply Equivalent Circuit Schematic IGBT Module IGBT ©2021 STARPOWER Semiconductor Ltd.
