GD400FFX65P3S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as hybrid and electric vehicles.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 6μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

Datasheet preview – GD400FFX65P3S

Datasheet Details

Part number GD400FFX65P3S
Manufacturer STARPOWER
File Size 203.14 KB
Description IGBT
Datasheet download datasheet GD400FFX65P3S Datasheet

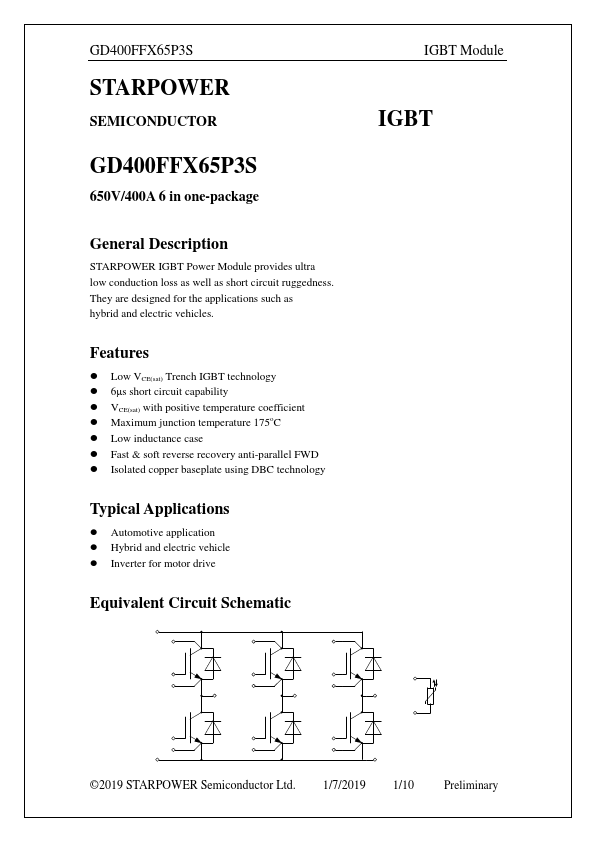

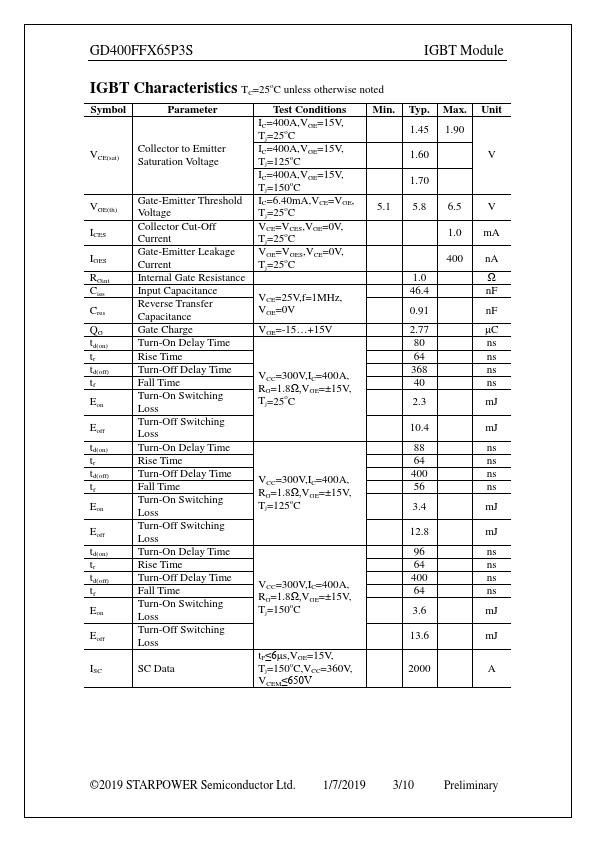

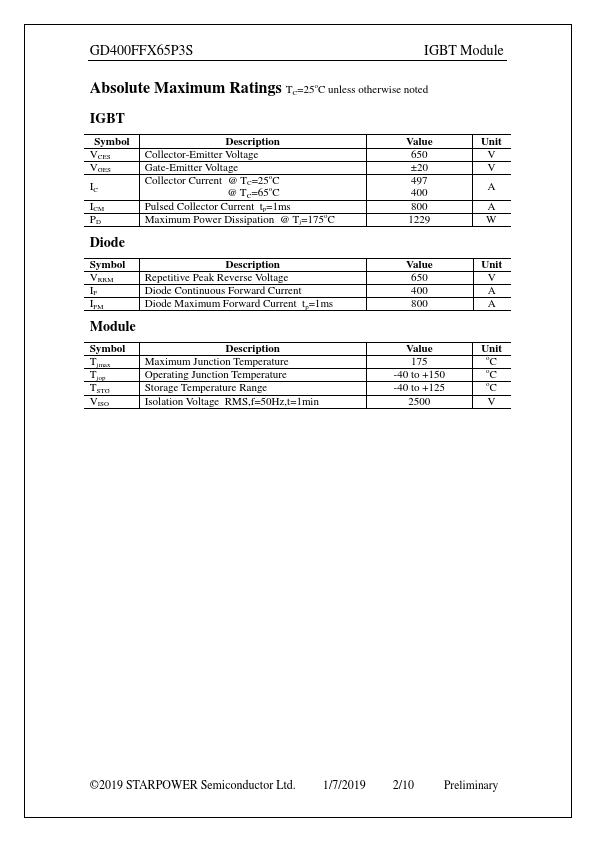

Additional preview pages of the GD400FFX65P3S datasheet.
