GD480HTA120P8HT, IGBT

GD480HTA120P8HT STARPOWER SEMICONDUCTOR GD480HTA120P8HT 1200V/480A 6 in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

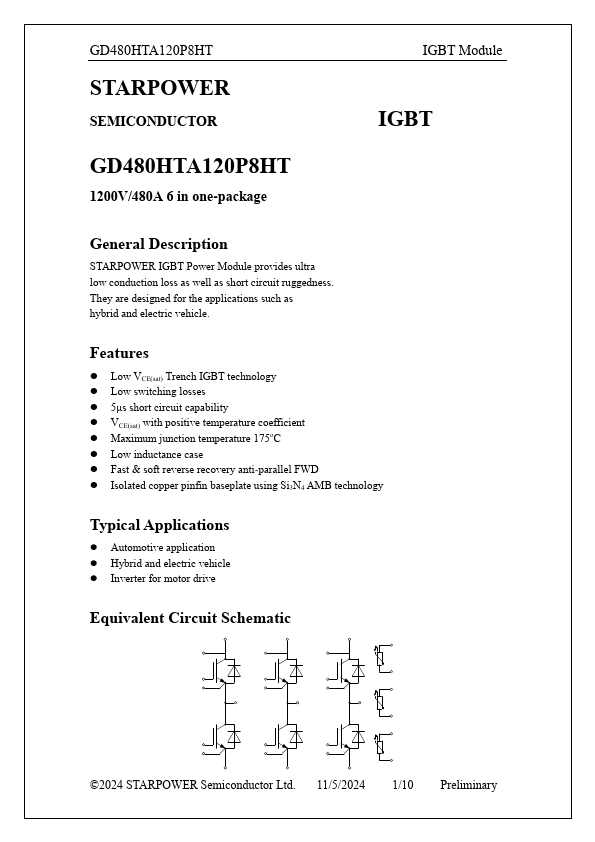

datasheet Preview Page 1 from Datasheet4u.com

GD480HTA120P8HT-STARPOWER.pdf

GD480HTA120P8HT Datasheet Preview — Preview of GD480HTA120P8HT PDF

Datasheet Details

Part number:

GD480HTA120P8HT

Manufacturer:

STARPOWER

File Size:

634.58 KB

Description:

IGBT

Features

* Low VCE(sat) Trench IGBT technology
* Low switching losses
* 5μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper p
