GD50PIY120C5SN - IGBT

STARPOWER

📥 Download Datasheet

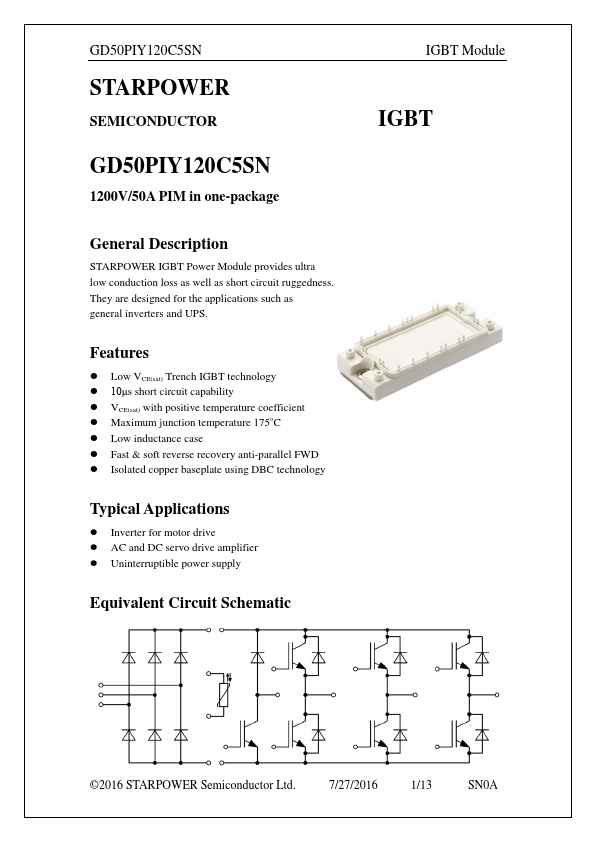

GD50PIY120C5SN Datasheet Preview — Preview of GD50PIY120C5SN PDF

datasheet Preview Page 2

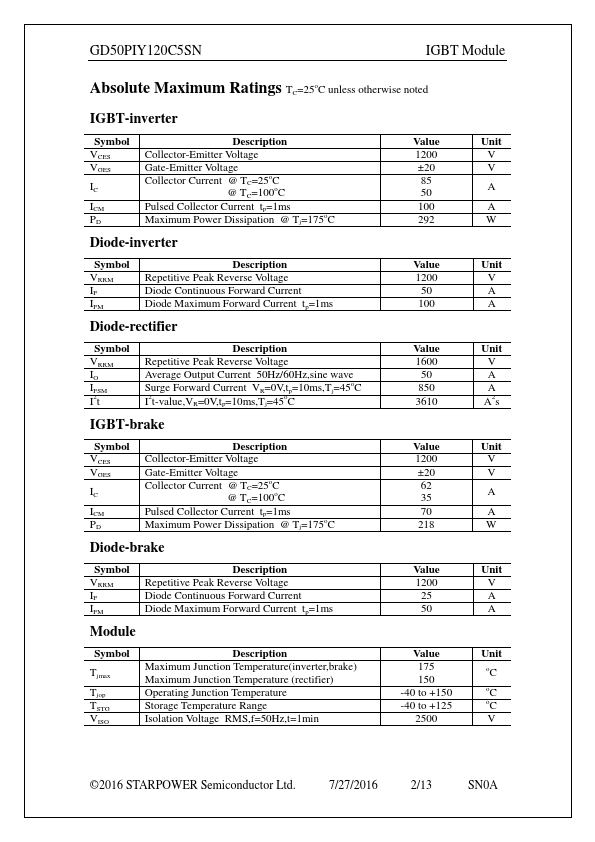

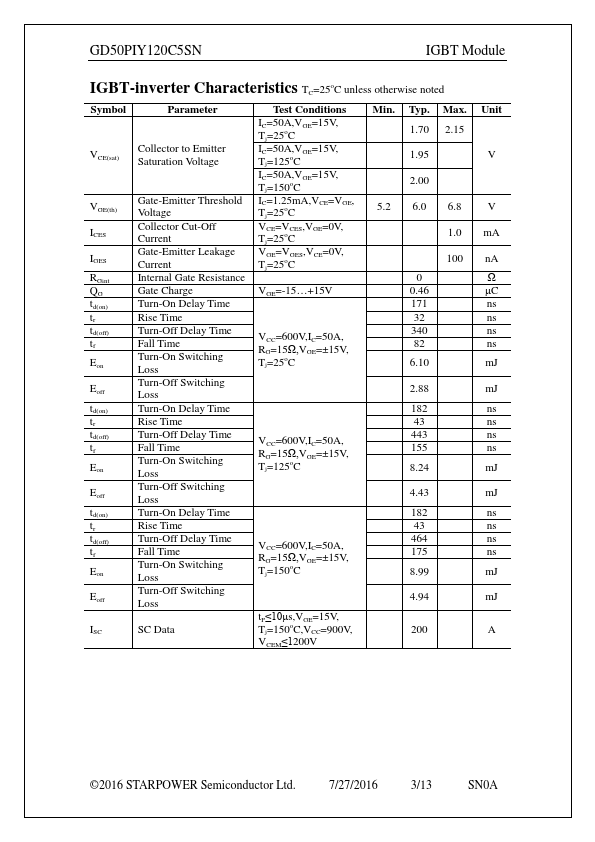

datasheet Preview Page 3

Datasheet Details

Part number	GD50PIY120C5SN
Manufacturer	STARPOWER
File Size	326.62 KB
Description	IGBT
Datasheet	GD50PIY120C5SN-STARPOWER.pdf

GD50PIY120C5SN Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
