GD50PIY120C6SN - IGBT

STARPOWER

📥 Download Datasheet

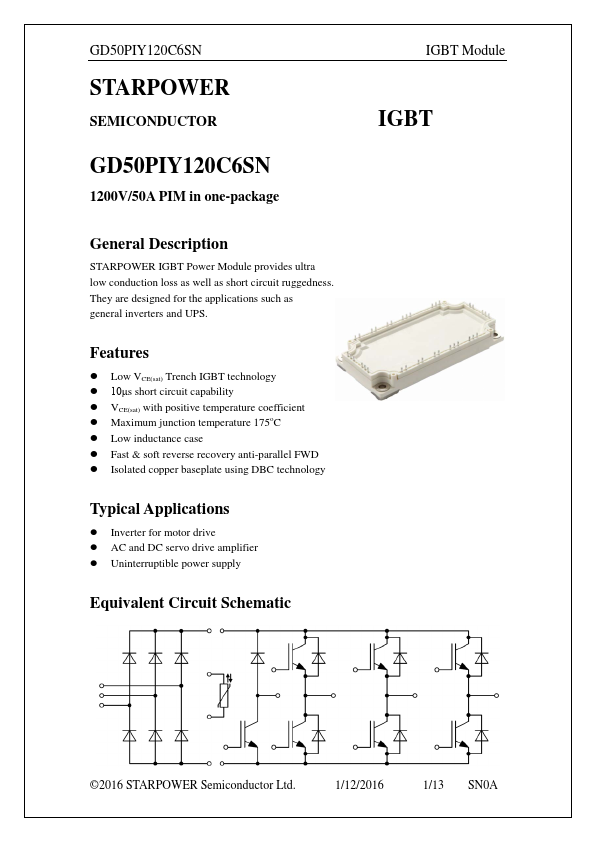

GD50PIY120C6SN Datasheet Preview — Preview of GD50PIY120C6SN PDF

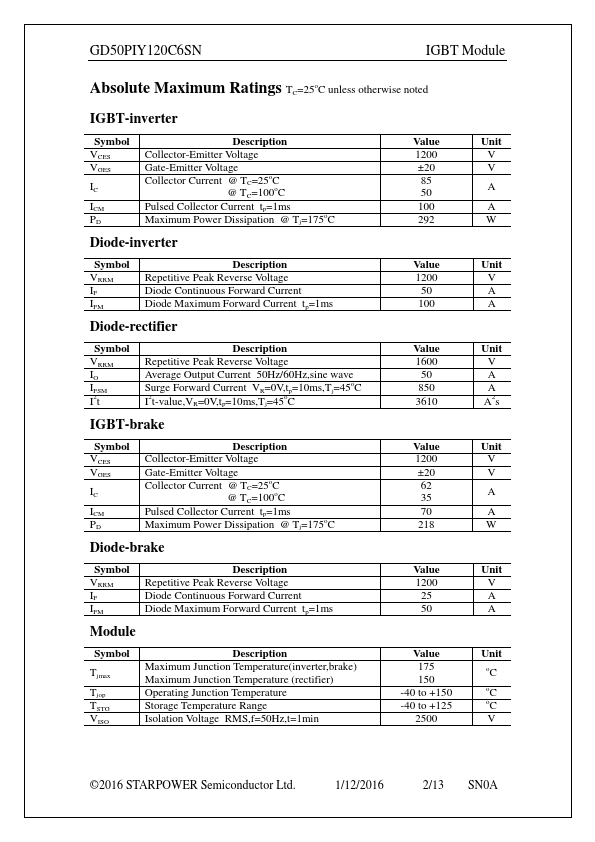

datasheet Preview Page 2

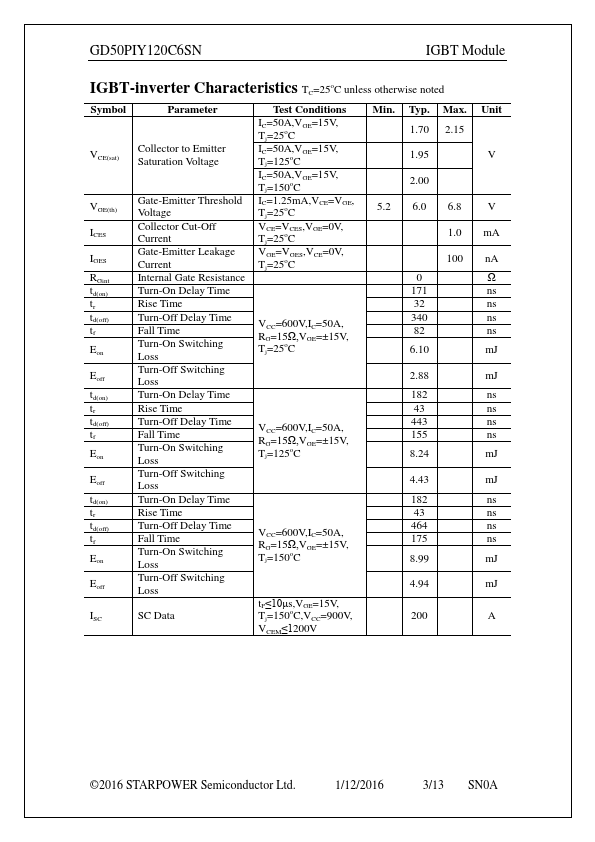

datasheet Preview Page 3

Datasheet Details

Part number	GD50PIY120C6SN
Manufacturer	STARPOWER
File Size	289.77 KB
Description	IGBT
Datasheet	GD50PIY120C6SN-STARPOWER.pdf

GD50PIY120C6SN Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
