GD50PIY120C5SNF - IGBT

STARPOWER

📥 Download Datasheet

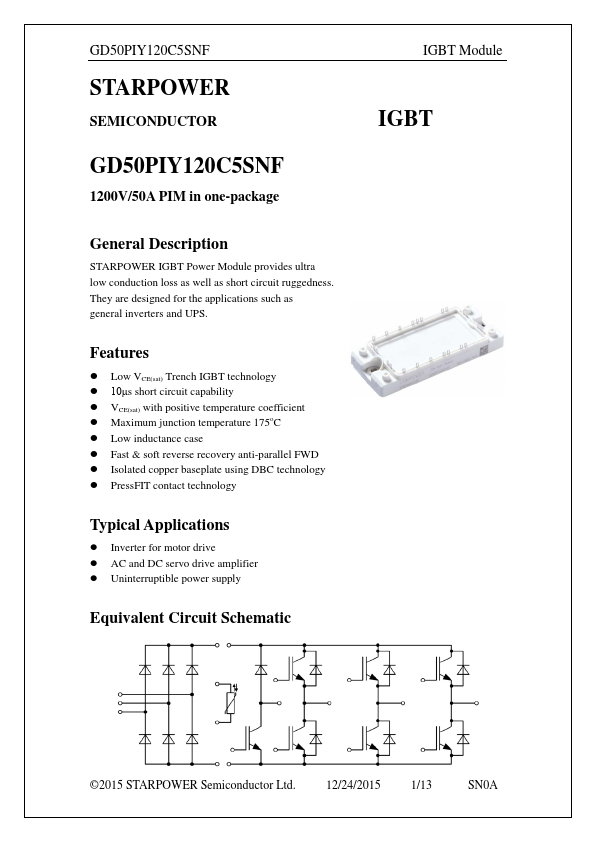

GD50PIY120C5SNF Datasheet Preview — Preview of GD50PIY120C5SNF PDF

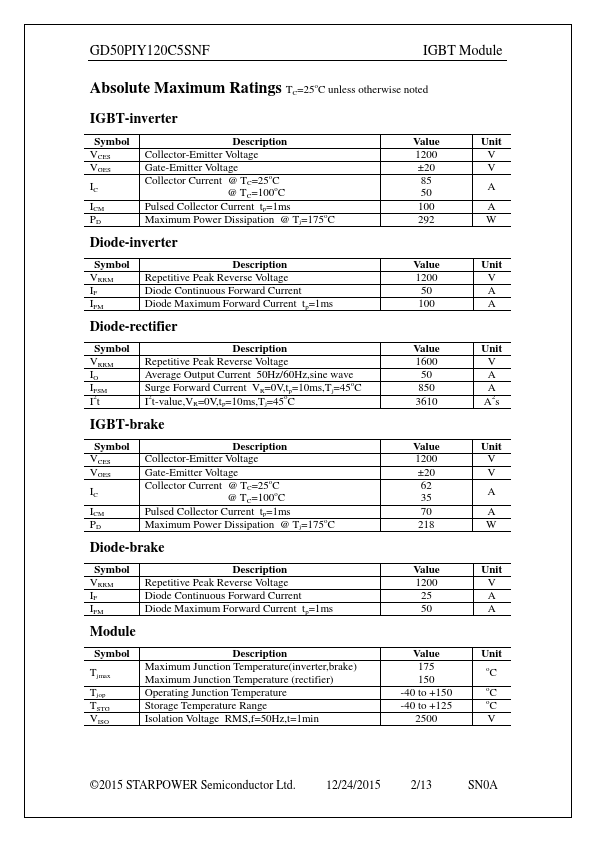

datasheet Preview Page 2

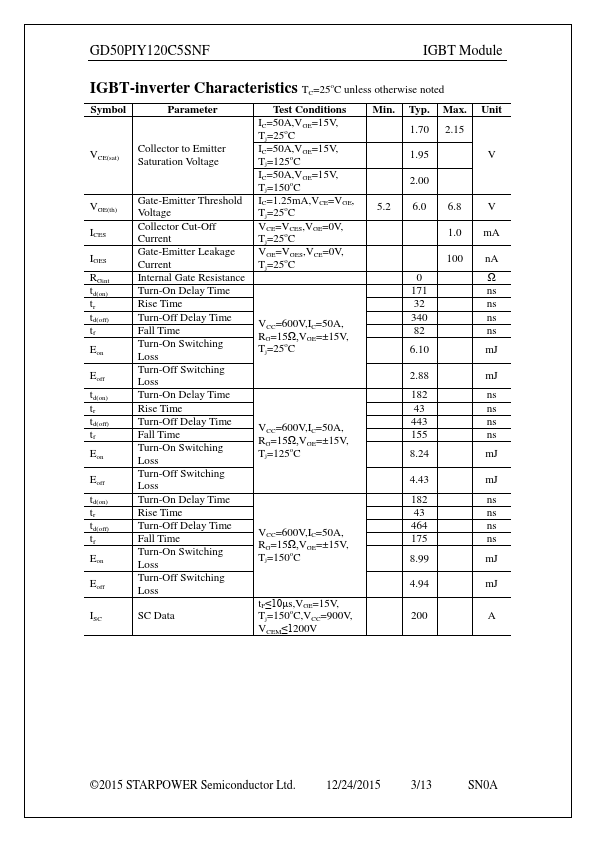

datasheet Preview Page 3

Datasheet Details

Part number	GD50PIY120C5SNF
Manufacturer	STARPOWER
File Size	307.81 KB
Description	IGBT
Datasheet	GD50PIY120C5SNF-STARPOWER.pdf

GD50PIY120C5SNF Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
PressFIT contact technology Typical.
