1N5820 - LOW DROP POWER SCHOTTKY RECTIFIER

1N5820 Description

® 1N582x LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj VF (max) 3A 40 V 150°C 0.475 V .
Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters.

📥 Download Datasheet

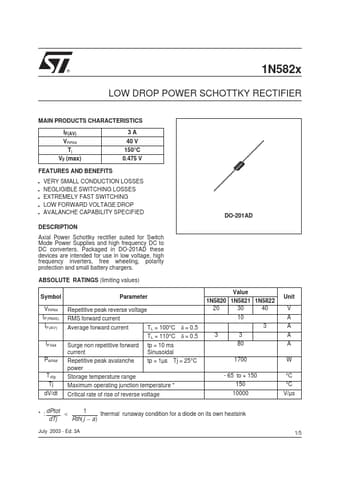

Preview of 1N5820 PDF
datasheet Preview Page 2 datasheet Preview Page 3
