1N5820-G

Schottky Barrier Rectifier

1N5820-G Features

* -Fast switching. -Low forward voltage, high current capability. -Low power loss, high efficiency. -High current surge capability. -High temperature soldering guaranteed: 250 OC/10 seconds, 0.375”(9.5mm) lead length at 5lbs. (2.3kg) tension. DO-27 0.052(1.3) 0.048(1.2) 1.0(25.4) MIN. 0.375(9.5) 0.3

1N5820-G Datasheet (95.40 KB)

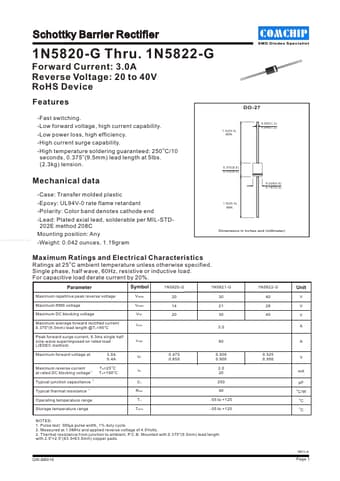

Preview of 1N5820-G PDF

Datasheet Details

Part number:

1N5820-G

Manufacturer:

Comchip Technology

File Size:

95.40 KB

Description:

Schottky barrier rectifier.
