1N5820 SCHOTTKY BARRIER RECTIFIERS

1N5820 Description

MOTOROLA Designer's SEMICONDUCTOR TECHNICAL DATA Order this document by 1N5820/D Axial Lead Rectifiers ...employing the Schottky Barrier princip.

1N5820 Features

* chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low
* voltage, high
* frequency inverters, free wheeling diodes, and polarity protection diodes.
* Extremely Low vF
* Low Power Loss/High

📥 Download Datasheet

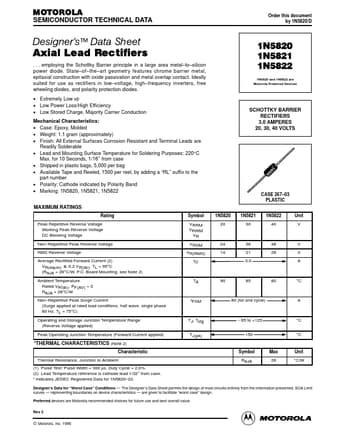

Preview of 1N5820 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5820
Manufacturer
MotorolaInc
File Size
168.51 KB
Datasheet
1N5820_MotorolaInc.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
