2N5415S - Silicon Planar Epitaxial PNP Transistor

2N5415S Description

2N5415S HIGH-VOLTAGE AMPLIFIER .
The 2N5415S is a silicon planar epitaxial PNP transistor in Jedec TO-39 metal case, intended for high vol-tage switching and linear amplifier applicat.

2N5415S Applications

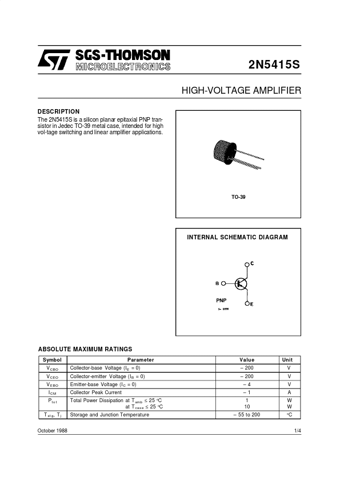

* TO-39 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO I CM Pt o t T st g, T j October 1988 Parameter Collector-base Voltage (I E = 0) Collector-emitter Voltage (I B = 0) Emitter-base Voltage (I C = 0) Collector Peak Current Total Power Dissipation at T amb ≤ 25 °C at
