2N5415UA, 2N5415 Datasheet - VPT

2N5415UA High Voltage Silicon Transistor

2N5415UA Features

* Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/485

* TO-39, TO-5 and UA Package Types

* Suitable For Drivers in High-Voltage, Low Current Inverters, Switching and Series Regulators Rev. V2 Electrical Characteristics (TA = +25oC unless otherwise specified) Par

2N5415-VPT.pdf

This datasheet PDF includes multiple part numbers: 2N5415UA, 2N5415. Please refer to the document for exact specifications by model.

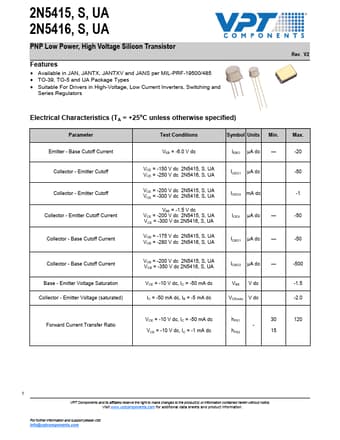

2N5415UA Datasheet Preview Page 2 2N5415UA Datasheet Preview Page 3

Datasheet Details

Part number:

2N5415UA, 2N5415

Manufacturer:

VPT

File Size:

445.30 KB

Description:

High voltage silicon transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N5415UA, 2N5415.
Please refer to the document for exact specifications by model.
