74164 8 BIT SIPO SHIFT REGISTER

The M54/74HC164 is a high speed CMOS 8 BIT SIPO SHIFT REGISTER fabricated in silicon gate 2 C MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The HC164 is an 8 bit shift register with serial data entry and an output from each of the eigh.

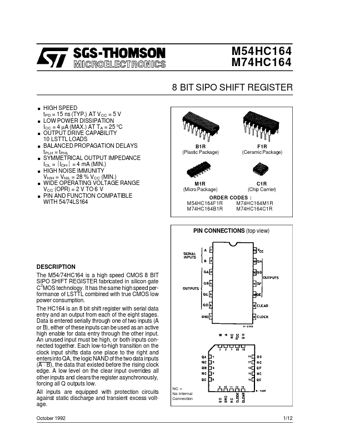

M54HC164 M74HC164 8 BIT SIPO SHIFT REGISTER . . . . . . . . HIGH SPEED tPD = 15 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS BALANCED PROPAGATION DELAYS tPLH = tPHL SYMMETRICAL OUTPUT IMPEDANCE IOL = IOH = 4 mA (MIN.) HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS164 B1R (Plastic Package) F1R (Ceramic Package) M1R (Micro Pac.
