74VHC245 - OCTAL BUS TRANSCEIVER

Datasheet Summary

Description

The 74VHC245 is an advanced high-speed CMOS OCTAL BUS TRANSCEIVER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

📥 Download Datasheet

Datasheet preview – 74VHC245

Datasheet Details

Part number 74VHC245
Manufacturer STMicroelectronics
File Size 66.28 KB
Description OCTAL BUS TRANSCEIVER
Datasheet download datasheet 74VHC245 Datasheet
Additional preview pages of the 74VHC245 datasheet.

📁 Similar Datasheet

  • 74VHC245 - Octal Bidirectional Transceiver (Fairchild Semiconductor)
  • 74VHC245 - Octal bus transceiver (nexperia)
  • 74VHC240 - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC244 - Octal buffer/line driver (nexperia)
  • 74VHC244 - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC244D - Octal buffer/line driver (nexperia)
  • 74VHC244M - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC244N - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC221A - Dual Non-Retriggerable Monostable Multivibrator (Fairchild Semiconductor)
  • 74VHC27 - Triple 3-Input NOR Gate (Fairchild Semiconductor)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

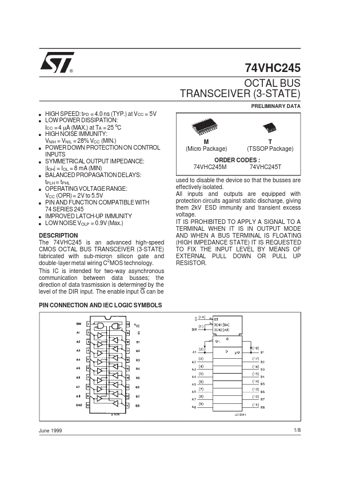

® 74VHC245 OCTAL BUS TRANSCEIVER (3-STATE) PRELIMINARY DATA s s s s s s s s s s HIGH SPEED: tPD = 4.0 ns (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 4 µA (MAX.) at TA = 25 oC HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.) POWER DOWN PROTECTION ON CONTROL INPUTS SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8 mA (MIN) BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 5.5V PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 245 IMPROVED LATCH-UP IMMUNITY LOW NOISE VOLP = 0.9V (Max.) M (Micro Package) T (TSSOP Package) ORDER CODES : 74VHC245M 74VHC245T used to disable the device so that the busses are effectively isolated.
