74VHC257 - QUAD 2 CHANNEL MULTIPLEXER

Datasheet Summary

Description

The 74VHC257 is an advanced high-speed CMOS QUAD 2 CHANNEL MULTIPLEXER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

It is composed of four independent 2 channel multiplexers with common SELECT and ENABLE INPUT.

📥 Download Datasheet

Datasheet preview – 74VHC257

Datasheet Details

Part number 74VHC257
Manufacturer STMicroelectronics
File Size 70.26 KB
Description QUAD 2 CHANNEL MULTIPLEXER
Datasheet download datasheet 74VHC257 Datasheet

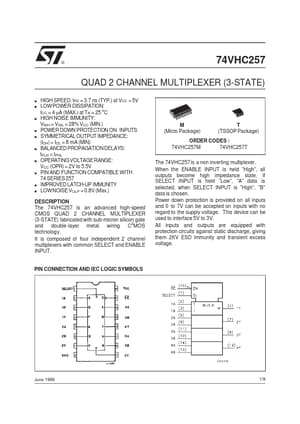

Additional preview pages of the 74VHC257 datasheet.

📁 Similar Datasheet

  • 74VHC221A - Dual Non-Retriggerable Monostable Multivibrator (Fairchild Semiconductor)
  • 74VHC240 - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC244 - Octal buffer/line driver (nexperia)
  • 74VHC244 - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC244D - Octal buffer/line driver (nexperia)
  • 74VHC244M - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC244N - Octal Buffer/Line Driver (Fairchild Semiconductor)
  • 74VHC245 - Octal Bidirectional Transceiver (Fairchild Semiconductor)
  • 74VHC245 - Octal bus transceiver (nexperia)
  • 74VHC27 - Triple 3-Input NOR Gate (Fairchild Semiconductor)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
® 74VHC257 QUAD 2 CHANNEL MULTIPLEXER (3-STATE) s s s s s s s s s s HIGH SPEED: tPD = 3.7 ns (TYP.) at VCC = 5V LOWPOWER DISSIPATION: ICC = 4 µA (MAX.) at TA = 25 oC HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.) POWER DOWN PROTECTION ON INPUTS SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8 mA (MIN) BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 5.5V PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 257 IMPROVED LATCH-UP IMMUNITY LOWNOISE VOLP = 0.8V (Max.) M (Micro Package) T (TSSOP Package) ORDER CODES : 74VHC257M 74VHC257T The 74VHC257 is a non inverting multiplexer. When the ENABLE INPUT is held ”High”, all outputs become high impedance state.
