AM80814-025

RF & MICROWAVE TRANSISTORS

AM80814-025 General Description

AM80814-025 is a high power silicon Class C transistor designed for ultra-broadband L-Band radar applications. This device is capable of operation over a broad range of pulse widths and duty cycles. Low RF thermal resistance and computerized automatic wire bonding techniques ensure high reliability .

AM80814-025 Datasheet (56.46 KB)

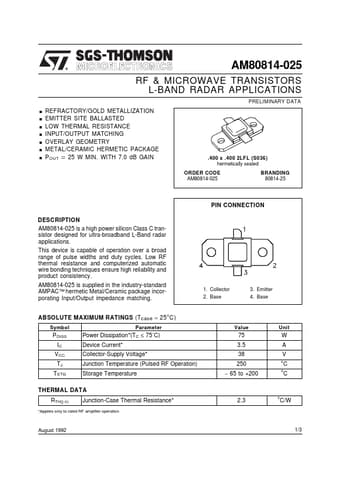

Preview of AM80814-025 PDF

Datasheet Details

Part number:

AM80814-025

Manufacturer:

STMicroelectronics ↗

File Size:

56.46 KB

Description:

Rf & microwave transistors.
AM80814-025 RF & MICROWAVE TRANSISTORS L-BAND RADAR APPLICATIONS . . . . . . . PRELIMINARY DATA REFRACTORY/GOLD METALLIZATION EMITTER SITE BALLASTE.
