AM800480LTMQW-TW0H - LCD MODULE

AMPIRE

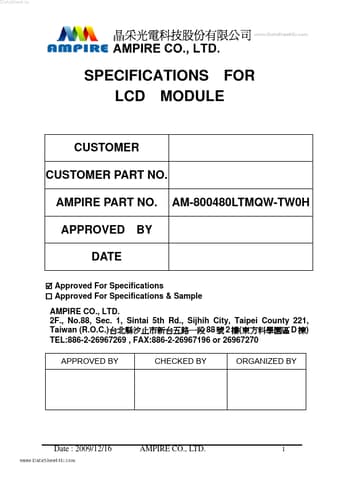

AM800480LTMQW-TW0H Datasheet Preview — Preview of AM800480LTMQW-TW0H PDF

Datasheet Details

Part number	AM800480LTMQW-TW0H
Manufacturer	AMPIRE
File Size	1.07 MB
Description	LCD MODULE
Datasheet	AM800480LTMQW-TW0H_AMPIRE.pdf

AM800480LTMQW-TW0H Product details

Description

Remark Date : 2009/12/16 AMPIRE CO., LTD.11 DataSheet.in 6 NBLOCK DIAGRAM www.DataSheet4U.com G1 800 xRGBx480 G480 S2460 S1 VCOM DC/DC Gate Driver Circuit Power Supply Circuit Driving Circuit TFT Panel DCLK VS HS DE R6 G6 B6 Output control SRAM PLL 4 /CSLCD SDI SCK /RESET MCU Power circuit SRAM control Input control OSC TFT LCD controller LED Driver PCB circuit Date : 2009/12/16 VDD VSS /RESET /WR (E) /RD(R/W) /CS RS DB0 DB1 DB2 DB3 DB4 DB5 DB6 DB7 DB8 DB9 DB10 DB11

Features

www. DataSheet4U. com 5 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module. This module is composed of a 5” TFT-LCD panel, LCD controller, power driver circuit, LED driver circuit and backlight unit. 1.1 TFT Panel Feature : (1) Construction: 5” a-Si color TFT-LCD, White LED Backlight, Touch Panel and PCB. (2) Resolution (pixel): 800(R. G. B) X480 (3) Number of the Colors : Real 262K colors ( R , G , B 6 bit digital each) (4) LCD type : Transmissive Color TFT LCD ( normally.
