AM800480E3TMQW-00H LCD

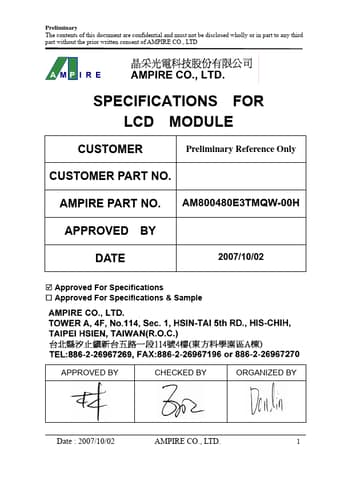

Preliminary The contents of this document are confidential and must not be disclosed wholly or in part to any third part without the prior written consent of AMPIRE CO., LTD A MP I R E SPECIFICATIONS FOR LCD MODULE CUSTOMER CUSTOMER PART NO. AMPIRE PART NO. APPROVED DATE ; Approved For Specifications Approved For Specifications & Sample Preliminary Reference Only AM800480E3TMQW-00H BY 2007/10/02 APPROVED BY CHECKED BY ORGANIZED BY Date : 2007/10/02 AMPIRE CO., LTD. 1 Preliminary Th.

AM800480E3TMQW-00H Features

* WVGA (16:9 diagonal) configuration

* Input interface voltage : 3.3V

* Data enable mode 1-2. Applications

* Portable TV

* Car user DVD

* Industrial application

* HMI (Human machine interface) 2. PHYSICAL SPECIFICATIONS Item Display resolution(dot) Active area Pixel pitc
