AM8035 - Single Chip a-Bit Microcomputers

This page provides the datasheet information for the AM8035, a member of the AM8048 Single Chip a-Bit Microcomputers family.

Datasheet Summary

Description

RAM data memory, 27 I/O lines, and an 8-bit timer/counter in addition to on board oscillator and clock circuits.

For systems that require extra capability, the Am8048 can be expanded using.

standard memories and Am9080A peripherals.

📥 Download Datasheet

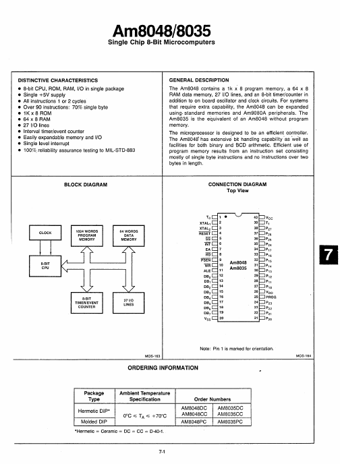

Datasheet preview – AM8035

Datasheet Details

Part number AM8035
Manufacturer AMD
File Size 168.31 KB
Description Single Chip a-Bit Microcomputers
Datasheet download datasheet AM8035 Datasheet
Additional preview pages of the AM8035 datasheet.

📁 Similar Datasheet

Other Datasheets by AMD
  • AM8048 - Single Chip a-Bit Microcomputers
  • AM8052 - (AM8152 / AM8153) Alphanumeric CRT Controller Chip-Set
  • AM8080A - 8-Bit Microprocessor
  • Am8085A - Single Chip 8-Bit N-Channel Microprocessor
  • Am8085A-2 - Single Chip 8-Bit N-Channel Microprocessor
  • Am8085ADM - Single Chip 8-Bit N-Channel Microprocessor
  • AM8150 - Display Refresh Controller
  • AM8152A - (AM8152 / AM8153) Alphanumeric CRT Controller Chip-Set

Full PDF Text Transcription

Click to expand full text
Am8048/8035 Single Chip a-Bit Microcomputers DISTINCTIVE CHARACTERISTICS • 8-bit CPU, ROM, RAM, I/O in single package • Single +5V supply • All instructions 1 or 2 cycles • Over 90 instructions: 70% single byte • 1K x 8 ROM • 64 x 8 RAM • 27 I/O lines • Interval timer/event counter • Easily expandable memory and I/O • Single level interrupt • 100%. reliability assurance testing to MIL-STD-883 BLOCK DIAGRAM 8-BIT TIMER/EVENT COUNTER 271/0 LINES GENERAL DESCRIPTION x The Am8048 contains a 1k 8 program memory, a 64 x 8 RAM data memory, 27 I/O lines, and an 8-bit timer/counter in addition to on board oscillator and clock circuits. For systems that require extra capability, the Am8048 can be expanded using. standard memories and Am9080A peripherals.
