AS21P2TLR - dual single-pole double-throw analog switch

AS21P2TLR Description

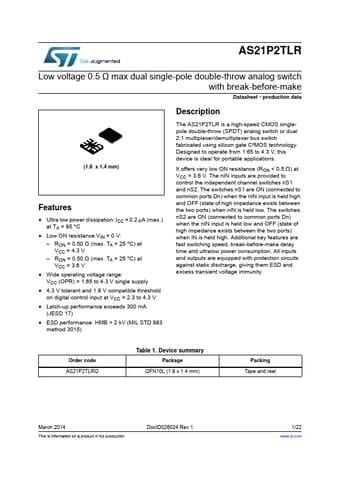

AS21P2TLR Low voltage 0.5 Ω max dual single-pole double-throw analog switch with break-before-make Datasheet - production data (1.8 x 1.4 mm) Featur.
The AS21P2TLR is a high-speed CMOS singlepole double-throw (SPDT) analog switch or dual 2:1 multiplexer/demultiplexer bus switch fabricated using sili.

AS21P2TLR Features

* Ultra low power dissipation: ICC = 0.2 µA (max. ) at TA = 85 °C
* Low ON resistance VIN = 0 V:
* RON = 0.50 Ω (max. TA = 25 °C) at VCC = 4.3 V
* RON = 0.50 Ω (max. TA = 25 °C) at VCC = 3.6 V
* Wide operating voltage range: VCC (OPR) = 1.65 to 4.3 V single supply
* 4.

AS21P2TLR Applications

* It offers very low ON resistance (RON < 0.5 ) at VCC = 3.6 V. The nIN inputs are provided to control the independent channel switches nS1 and nS2. The switches nS1 are ON (connected to common ports Dn) when the nIN input is held high and OFF (state of high impedance exists between the two ports) w
