AS217-000 Datasheet, Linearity, Skyworks Solutions

AS217-000 Features

  • Linearity
  • +2.7 to +5 V Linear Operation
  • Harmonics H2, H3 > 70 dBc @ PIN = 34.5 dBm
  • Low TX Insertion Loss (0.25 dB @ 0.9 GHz)
  • High RX Isolation (35 dB @ 0.

PDF File Details

Part number:

AS217-000

Manufacturer:

Skyworks Solutions

File Size:

491.36kb

Download:

📄 Datasheet

Description:

Phemt gaas ic high linearity. The AS217-000 is a PHEMT GaAs FET IC high linearity SPDT switch. This switch has been designed for use where extremely high linearity

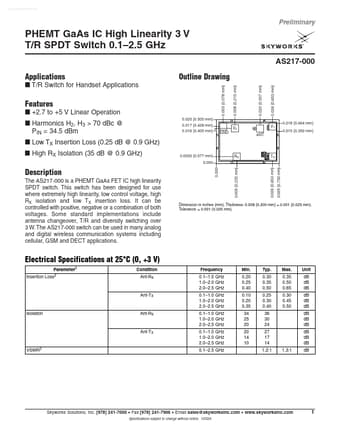

Datasheet Preview: AS217-000 📥 Download PDF (491.36kb)
Page 2 of AS217-000 Page 3 of AS217-000

AS217-000 Application

  • Applications
  • T/R Switch for Handset Applications Outline Drawing 0.003 (0.078 mm) 0.008 (0.215 mm) 0.020 (0.507 mm) 0.026 (0.653 mm) V1 A
