AS212-93

GaAs IC 4 x 2 Switch Matrix

AS212-93 Features

* Four Inputs, Two Output Switches

* Any Input Can Be Directed To Either Output

* Only Requires 4 Control Lines

* Low DC Power Consumption

* Small Low Cost TSSOP-16 Plastic Package

* High Isolation Between Ports 0.252 (6.4 mm) BSC 0.006 (0.15 mm) MAX. 0.002 (0.05 mm) MIN. 0

AS212-93 General Description

The AS212-93 is an IC FET 4 x 2 matrix switch in a low cost TSSOP-16 exposed paddle plastic package. The www.DataSheet4U.com exposed paddle should be grounded. The AS212-93 enables 16 states directing any of the four inputs to any of the two outputs. DC block capacitors are required at each RF port..

AS212-93 Datasheet (679.63 KB)

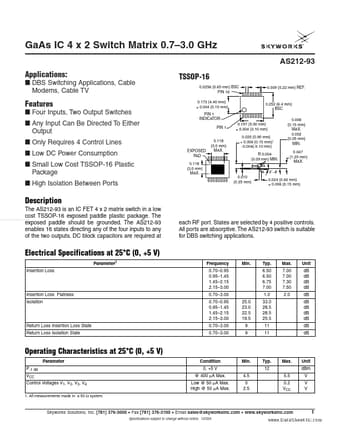

Preview of AS212-93 PDF

Datasheet Details

Part number:

AS212-93

Manufacturer:

Skyworks Solutions

File Size:

679.63 KB

Description:

Gaas ic 4 x 2 switch matrix.
GaAs IC 4 x 2 Switch Matrix 0.7

*3.0 GHz AS212-93 Applications:
* DBS Switching Applications, Cable Modems, Cable TV TSSOP-16 0.0256 (0.65.
