BD336 Datasheet - STMicroelectronics

BD336 SILICON PNP POWER DARLINGTON TRANSISTOR

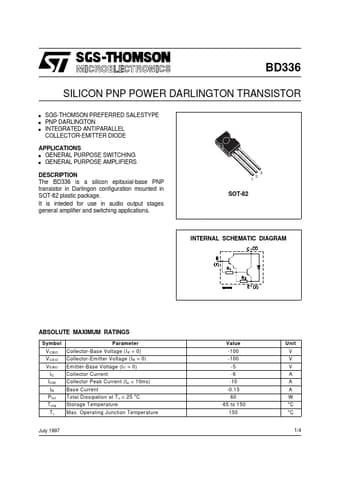

The BD336 is a silicon epitaxial-base PNP transistor in Darlingon configuration mounted in SOT-82 plastic package. It is inteded for use in audio output stages general amplifier and switching applications. 1 2 3 SOT-82 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EB.

BD336_STMicroelectronics.pdf

Preview of BD336 PDF
BD336 Datasheet Preview Page 2 BD336 Datasheet Preview Page 3

Datasheet Details

Part number:

BD336

Manufacturer:

STMicroelectronics ↗

File Size:

60.36 KB

Description:

Silicon pnp power darlington transistor.
