BTA20 Datasheet, Triacs, STMicroelectronics

BTA20 Features

  • Triacs
  • IT(RMS) = 20 A
  • VDRM, VRRM = 600 and 700 V
  • IGT (Q1) (max) = 35 and 50 mA Description The BTA20 Triacs use high performance glass passivated chip technology.

PDF File Details

Part number:

BTA20

Manufacturer:

STMicroelectronics ↗

File Size:

87.04kb

Download:

📄 Datasheet

Description:

20a snubberless triacs. The BTA20 Triacs use high performance glass passivated chip technology. The Snubberless concept offers suppression of the RC network

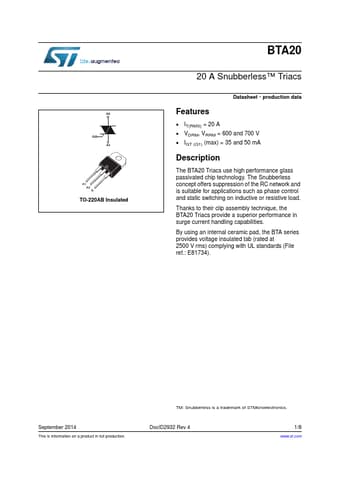

Datasheet Preview: BTA20 📥 Download PDF (87.04kb)
Page 2 of BTA20 Page 3 of BTA20

BTA20 Application

  • Applications such as phase control and static switching on inductive or resistive load. Thanks to their clip assembly technique, the BTA20 Triacs pr
