BTA20-700CW, BTA20, 20A Snubberless Triacs

A2 G A1 A1 A2 G TO-220AB Insulated BTA20 20 A Snubberless™ Triacs Datasheet - production data .
The BTA20 Triacs use high performance glass passivated chip technology.

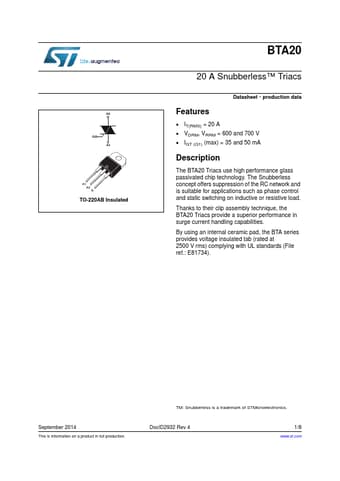

datasheet Preview Page 1 from Datasheet4u.com

BTA20-STMicroelectronics.pdf

BTA20-700CW Datasheet Preview — This datasheet PDF includes multiple part numbers: BTA20-700CW, BTA20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BTA20-700CW, BTA20

Manufacturer:

STMicroelectronics ↗

File Size:

87.04 KB

Description:

20A Snubberless Triacs

Note:

This datasheet PDF includes multiple part numbers: BTA20-700CW, BTA20.
Please refer to the document for exact specifications by model.

Features

* IT(RMS) = 20 A
* VDRM, VRRM = 600 and 700 V

Applications

* such as phase control and static switching on inductive or resistive load. Thanks to their clip assembly technique, the BTA20 Triacs provide a superior performance in surge current handling capabilities. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500 V
