D11NM60N N-CHANNEL Power MOSFET

D11NM60N Description

STx11NM60N N-channel 600 V, 0.37 Ω, 10 A MDmesh™ II Power MOSFET TO-220, TO-220FP, I2PAK, IPAK, DPAK, D2PAK .
This series of devices is designed using the second generation of MDmesh™ technology.

D11NM60N Features

* Type VDSS (@TJmax) STB11NM60N-1 STB11NM60N STD11NM60N STD11NM60N-1 STF11NM60N STP11NM60N 650 V 650 V 650 V 650 V 650 V 650 V RDS(on) max 0.45 Ω 0.45 Ω 0.45 Ω 0.45 Ω 0.45 Ω 0.45 Ω ID 10 A 10 A 10 A 10 A 10 A(1) 10 A 1. Limited only by maximum temperature allowed
* 100% avalanche tested

📥 Download Datasheet

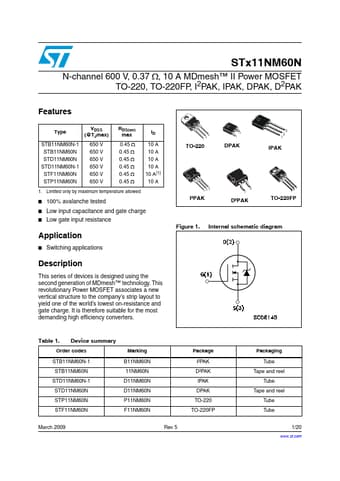

Preview of D11NM60N PDF
datasheet Preview Page 2 datasheet Preview Page 3
