D3NK80Z, N-CHANNEL Power MOSFET

STD3NK80Z-1, STD3NK80ZT4, STF3NK80Z, STP3NK80Z N-channel 800 V, 3.8 Ω typ., 2.5 A SuperMESH™ Power MOSFETs in IPAK, DPAK, TO-220FP, TO-220 packages Da.
These high voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology by STMicroelectronics, an optimizatio.

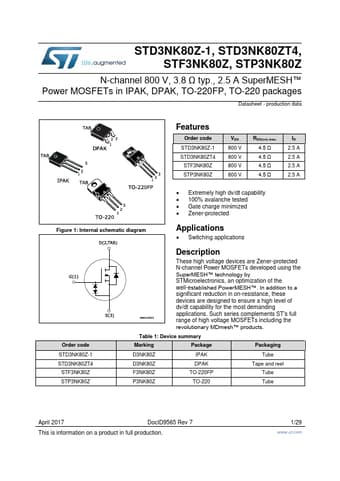

datasheet Preview Page 1 from Datasheet4u.com

D3NK80Z-STMicroelectronics.pdf

D3NK80Z Datasheet Preview — Preview of D3NK80Z PDF

Datasheet Details

Part number:

D3NK80Z

Manufacturer:

STMicroelectronics ↗

File Size:

1.33 MB

Description:

N-CHANNEL Power MOSFET

Features

* Order code STD3NK80Z-1 STD3NK80ZT4 STF3NK80Z STP3NK80Z VDS 800 V 800 V 800 V 800 V RDS(on) max. 4.5 Ω 4.5 Ω 4.5 Ω 4.5 Ω ID 2.5 A 2.5 A 2.5 A 2.5 A
* Extremely high dv/dt capability
* 100% avalanche tested
* Gate charge minimized
* Zener-protected Figure 1: Internal schematic dia
