DTV1500MD

CRT HORIZONTAL DEFLECTION HIGH VOLTAGE DAMPER DIODE

DTV1500MD Features

* s 6A 1500 V 1.65 V 135 ns K A s s s s s s High breakdown voltage capability High frequency operation Specified turn on switching characteristics Very fast recovery diode Low static and peak forward voltage drop for low dissipation Insulated package (ISOWATT220AC, TO-220FPAC): Insulating vo

DTV1500MD General Description

High voltage diode especially designed for horizontal deflection stage in standard and high resolution displays for TV’s and monitors. This device is packaged in TO-220AC, ISOWATT220AC and TO-220FPAC (insulated package). ABSOLUTE MAXIMUM RATINGS Symbol VRRM IF(RMS) IFSM Tstg Tj Parameter Repetitive .

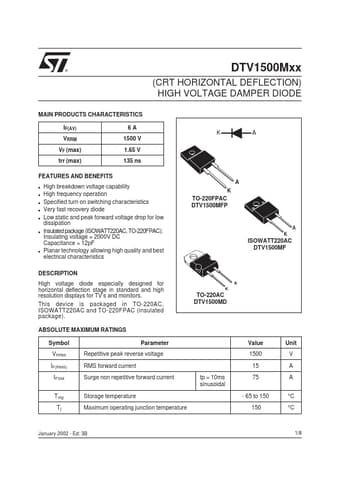

DTV1500MD Datasheet (90.08 KB)

Preview of DTV1500MD PDF

Datasheet Details

Part number:

DTV1500MD

Manufacturer:

STMicroelectronics ↗

File Size:

90.08 KB

Description:

Crt horizontal deflection high voltage damper diode.
