ESDZV18-1BF4

low capacitance bidirectional single line ESD protection

ESDZV18-1BF4 Features

* Low clamping voltage

* Bidirectional device

* Low leakage current < 100 nA

* 0201 package

* ECOPACK2 compliant component

* Exceeds IEC 61000-4-2 level 4 standard:

* ±30 kV (air discharge)

* ±30 kV (contact discharge) Applications Wher

ESDZV18-1BF4 General Description

The ESDZV18-1BF4 is a bidirectional single line TVS diode designed to protect the data line or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required. DS12250 - Rev 2 - February 2021 For further informatio.

ESDZV18-1BF4 Datasheet (360.54 KB)

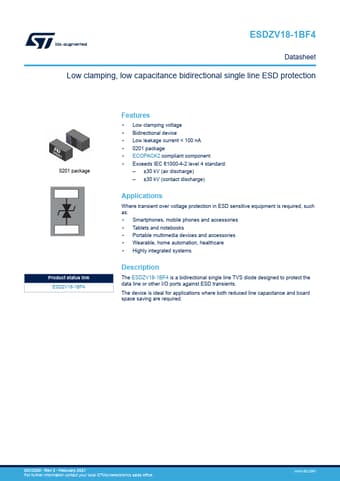

Preview of ESDZV18-1BF4 PDF

Datasheet Details

Part number:

ESDZV18-1BF4

Manufacturer:

STMicroelectronics ↗

File Size:

360.54 KB

Description:

Low capacitance bidirectional single line esd protection.
